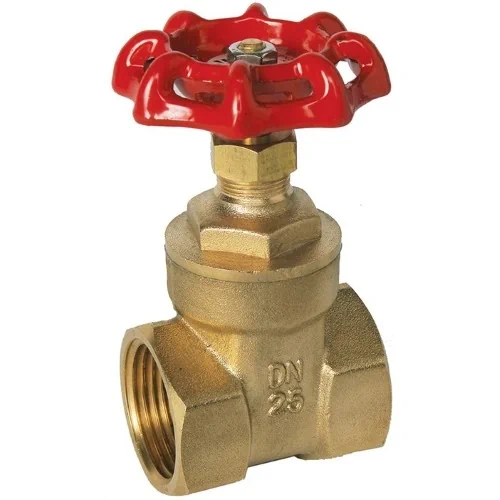

Albion Art610 Full Bore Brass Gate Valve

Brand: Albion
SKU: 31ART610

£5.68£147.65 ex. VAT

About this product

Albion Art610 Full Bore Brass Gate Valve

Body, bonnet and wedge (gate) made of brass, PTFE body gasket

Female BSPT taper threaded ends conforming to ISO 7/1

Brass stem with PTFE stem packing

Conforms to the BS EN 12288:2010 standard for copper alloy gate valves, previously BS 5154

Suitable for use with saturated steam

Manual operation via cast iron handwheel

Maximum operating pressure: 20 bar (PN20) at up to approx 70°C

Operating temperature range: -20°C – 170°C

Specification

Weight N/A
Dimensions N/A
Brand

Valve Type

Full Bore Gate Valve

Connections

Female BSPT Taper Threads – ISO 7-1, BS EN 10226-1

Manufacturing Standard

Conforms to BS EN 12288 (Previously BS 5154)

Operation

Manual Handwheel Operated

Body Material

Brass

Wedge Material

Brass

Stem Material

Brass

Seat Material

Cast Brass

Stem Packing Material

PTFE

Maximum Operating Pressure

20 bar

Operating Temperature Range

-20°C – 170°C

Additional Information

Suitable for saturated steam

Certification Availability

2.1 Letter of Conformity Only – Must be requested at time of order
