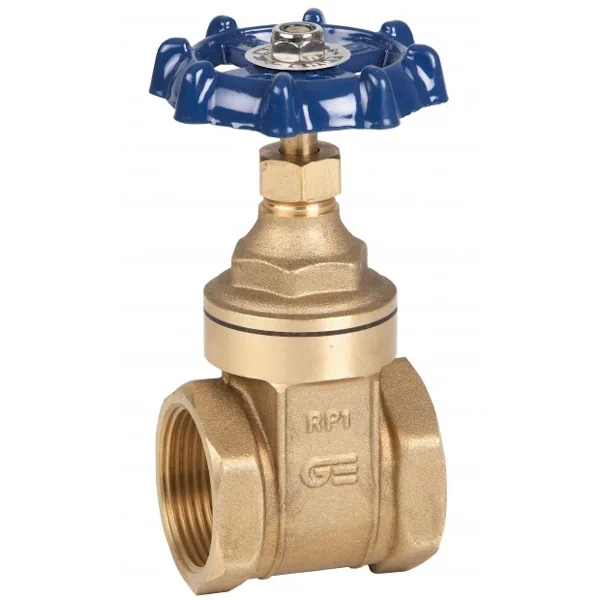

Genebre Art3221 Full Bore Brass Gate Valve (PN20)

Brand: Genebre
SKU: 32ART3221

£6.79£187.44 ex. VAT

About this product

Genebre Art3221 Full Bore Brass Gate Valve

Gate valve with a full interior bore

Body and bonnet made of CW617N brass to UNE-EN 12165 sealed with a fibre gasket

Wedge/gate made of CW617N brass

Female BSPP parallel threaded ends conforming to ISO 228/1

Brass stem with PTFE packing ring

Suitable for hot & cold water as well as many different types of oil

Operated by aluminium handwheel

Maximum operating pressure: 20 bar (PN20) at up to 150°C

Operating temperature range: 0°C – 180°C

Specification

Weight N/A
Dimensions N/A
Brand

Valve Type

Full Bore Gate Valve

Connections

Female BSPP Parallel Threads – ISO 228-1, BS EN 10226-1

Operation

Manual Handwheel Operated

Body Material

Brass (CW614N)

Disc Material

Brass (CW614N)

Stem Material

Brass (CW614N)

Body Gasket Material

Fibre

Stem Packing Material

PTFE

Maximum Operating Pressure

20 bar

Operating Temperature Range

0°C – 180°C

Certification Availability

N/A
