Albion Art175 Full Bore Brass Gate Valve

Brand: Albion
SKU: 31ART175

£10.25£53.90 ex. VAT

About this product

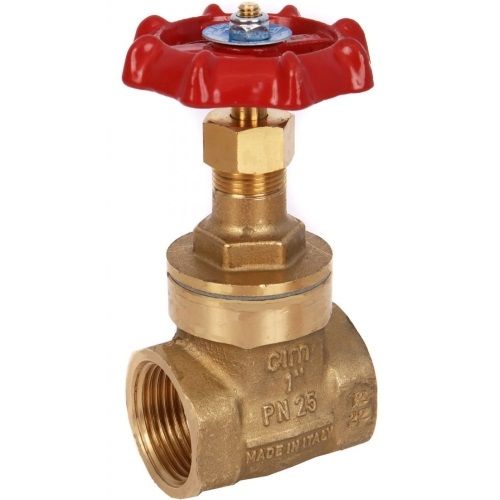

Albion Art175 Brass Gate Valve

Full bore gate valve with brass body & bonnet sealed with a graphite body gasket

Female BSPT taper threaded ends conforming to ISO 7-1:1994

Manufactured to the BS EN 12288:2010 standard for copper alloy gate valves, previously BS 5154

Brass stem with PTFE gasket

BSI Kitemarked: KM553179

Handwheel operated

Maximum operating pressure: 25 bar (PN25) up to approx 95°C

Operating temperature range: -10°C to 186°C

Specification

Weight N/A
Dimensions N/A
Brand

Valve Type

Full Bore Gate Valve

Connections

Female BSPT Taper Threads – ISO 7-1, BS EN 10226-2

Manufacturing Standard

Conforms to BS EN 12288 (previously BS 5154)

Operation

Manual Handwheel Operated

Body Material

Brass

Wedge Material

Brass

Stem Material

Brass

Stem Gasket Material

PTFE

Maximum Operating Pressure

25 bar

Operating Temperature Range

-10°C – 186°C

Approvals

BSI Kitemarked – KM553179 (Quality)

Certification Availability

2.1 Letter of Conformity Only – Must be requested at time of order
