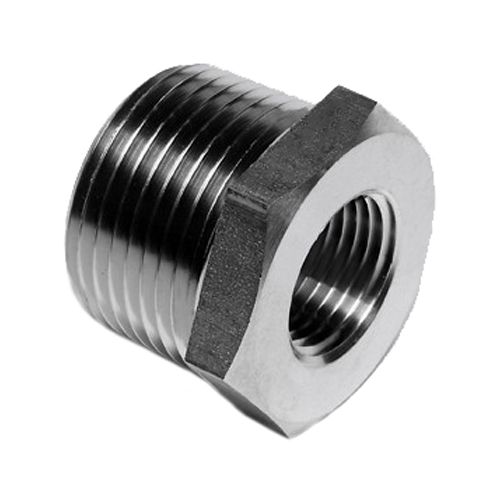

NPT Galvanised Carbon Steel Hexagon Reducing Bush (6000lb)

Brand: Lame Fittings
SKU: 6212GN

£0.00 – £29.81 ex. VAT

About this product

ASME B16.11 NPT Threaded Galvanised Carbon Steel Reducing Bush

Pipe fitting in HDG galvanised forged carbon steel ASTM A105N

Male & female NPT taper threaded ends to ASME B1.20.1

Manufactured in Europe to ASME B16.11:2016 (BS 3799:1974) standards

Ideal for high pressure/temperature systems handling hot & cold water, oils, fuels, chemicals and more

For use with hot finished seamless steel tube to ASTM A106 grade B

Maximum operating pressure: 6000lb/6000PSI (413 bar)

Operating temperature range: 0°C – 450°C

3.1 Material test certificate available on request

Datasheet download

Specification

Weight N/A
Dimensions N/A
Brand

Fitting Type

Hexagon Reducing Bush
Connections

Male x Female NPT Taper Threaded – ASME B1.20.1
Manufacturing Standard

ASME B16.11 & BS 3799
Pressure Class

6000lb
Body Material

HDG Galvanised Forged Carbon Steel (ASTM A105N)
Wall Thickness

See datasheet
Maximum Operating Pressure

6000psi (412 bar)
Operating Temperature Range

0°C – 450°C
Certification Availability

3.1 Material test certificate to BS EN 10204. (Must be requested at time of order)
