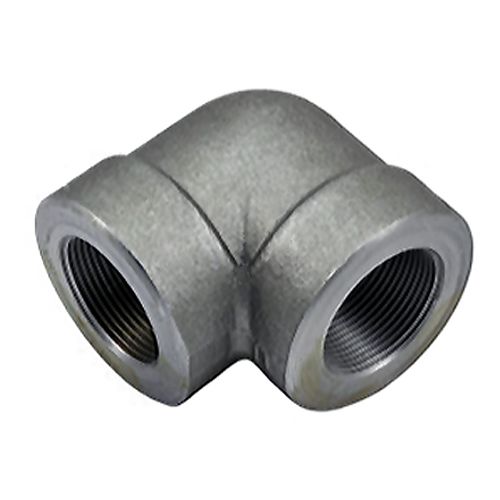

BSPT Galvanised Carbon Steel 90 Degree Elbow (3000lb)

Brand: Lame Fittings
SKU: 6200G

£0.00£69.96 ex. VAT

About this product

ASME B16.11 BSPT Threaded Galvanised Carbon Steel 90 Degree Elbow

Pipe fitting in HDG galvanised forged carbon steel ASTM A105N

Female BSPT taper threaded ends to BS EN 10226-2 (ISO 7-1)

Manufactured in Europe to ASME B16.11:2016 (BS 3799:1974) standards

Wall thickness: See datasheet

Ideal for high pressure/temperature systems handling hot & cold water, oils, fuels, chemicals and more

For use with hot finished seamless steel tube to ASTM A106 grade B

Maximum operating pressure: 3000lb/3000PSI (206 bar)

Operating temperature range: 0°C – 450°C

3.1 Material test certificate available on request

Specification

Weight N/A
Dimensions N/A
Brand

Fitting Type

90 Degree Elbow

Connections

Female BSPT Taper Threaded – BS EN 10226-2 (ISO 7-1)

Manufacturing Standard

ASME B16.11 & BS 3799

Pressure Class

3000lb

Body Material

HDG Galvanised Forged Carbon Steel (ASTM A105N)

Wall Thickness

See datasheet

Maximum Operating Pressure

3000psi (206 bar)

Operating Temperature Range

0°C – 450°C

Certification Availability

3.1 Material test certificate to BS EN 10204. (Must be requested at time of order)
