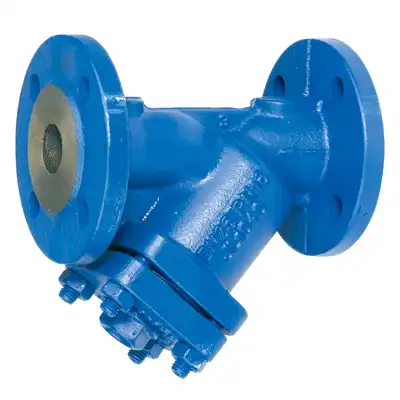

TLV Y8F-25 Ductile Iron Y-Strainer (PN25 Flanged)
Body and cover made of ductile cast iron EN-GJS-400, sealed with a graphite & stainless steel gasket and steel bolts
PN16 flanged ends to DIN 2501 (BS EN 1092-1)
Durable screen made of stainless steel 304 with 1.0mm perforations
Built-in steel drain plug with stainless steel seal
Simple yet rugged design ensures long service life
Designed for easy inline cleaning and maintenance
Precise screen guidance in cover and body
Suitable for use with steam, water and other fluids
Maximum operating pressure: 25 bar (PN25) at up to 120°C
Operating temperature range: -10°C – 300°C
