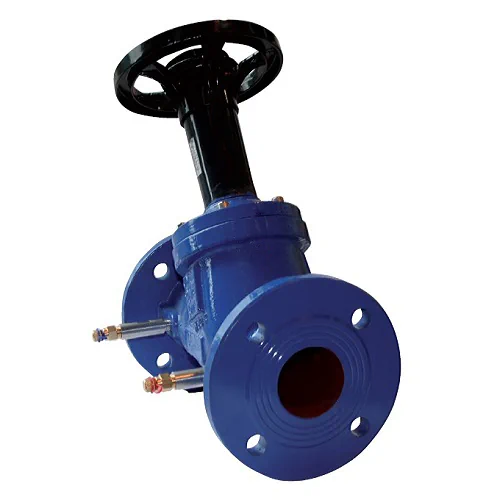

Albion Art250 Double Regulating Valve (PN16 Flanged)

Brand: Albion
SKU: 31ART250

£0.00£1,639.67 ex. VAT

About this product

Albion Art250 Ductile Iron Double Regulating Valve (PN16 Flanged)

Body made of ductile iron

Cone made of cast iron with EPDM rubber seating to provide a tight shut off

Comes with PN16 flanged ends conforming to BS EN 1092-1:2018

Flange PCD (Pitch circle diameter): See datasheet

Bolt holes: See datasheet

Position indicator

Supplied with 2 fitted brass pressure test points and extensions

Black EPDM rubber O-rings

Stem made of stainless steel 304

Aluminium handwheel operated

Maximum operating pressure: 16 bar (PN16)

Operating temperature range: -10°C – 120°C

Specification

Weight N/A
Dimensions N/A
Brand

Valve Type

Double Regulating Valve

Connections

PN16 Flanged – BS EN 1092-1

Manufacturing Standard

Conforms to BS 5152 & BS 7350

Operation

Manual Handwheel Operated

Body Material

Ductile Iron

Cone

Cast Iron

Stem Material

Stainless Steel 304

Cone Seat Material

EPDM

Stem O-Ring Material

EPDM

Flange Diameter

See datasheet

Flange PCD

See datasheet

Flange Thickness

See datasheet

Flange Bolt Holes

See datasheet

Maximum Operating Pressure

16 bar

Operating Temperature Range

-10°C – 120°C

Additional Information

Built-in position indicator. Supplied with 2 brass pressure test points and extensions

Certification Availability

2.1 Letter of Conformity Only – Must be requested at time of order
