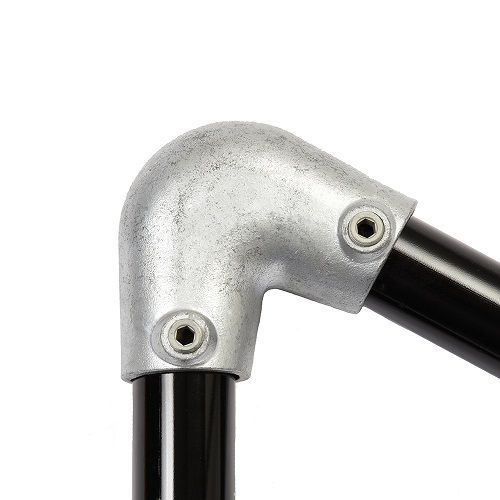

Fastclamp C72A Galvanised Acute Angle Elbow (11 – 30°)
The FastClamp C72A acute angle elbow is installed on sloping handrail and guardrail installations to mitigate the need for bending the tubes, often used to join end posts and other sloping tubes at an angle between 11 and 30 degrees.
Made of cast malleable iron to BS EN 1562:2012 with a hot dipped galvanised (HDG) finish to BS EN ISO 1461:2009
Recommended for installation with medium wall thickness galvanised tube to BS EN 10255
Adjustment range: 11 – 30°
No drilling, welding or special tools required, simply tighten the included set screws with an Allen key or rachet
Ideal for use in handrail or guardrail systems as well as roof edge protection, barriers, racks, shelving, sports nets and much more
