Fastclamp C72 Galvanised Acute Angle Elbow (30 – 45°)

Brand: FastClamp
SKU: 53C72

£10.38£13.70 ex. VAT

About this product

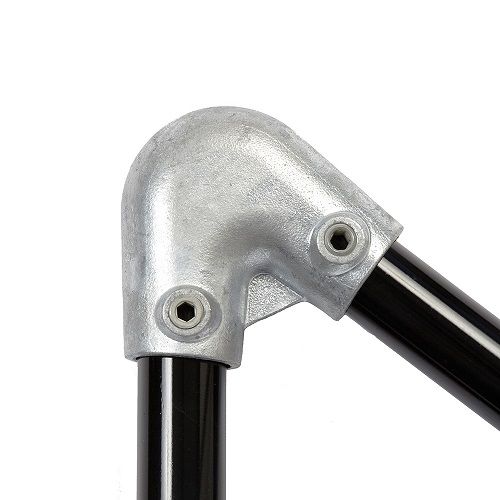

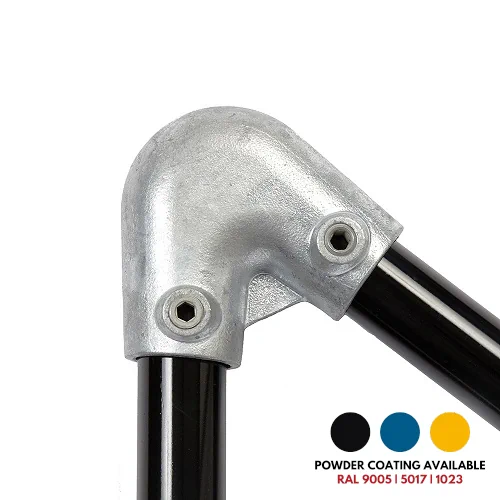

Fastclamp C72 Galvanised Acute Angle Elbow (30 – 45°)

The FastClamp C72 acute angle elbow is installed on sloping handrail and guardrail installations to join end posts and other sloping tubes at an angle between 30 and 45 degrees as these angles are two sharp for tube bending.

Made of cast malleable iron to BS EN 1562:2012 with a hot dipped galvanised (HDG) finish to BS EN ISO 1461:2009

Recommended for installation with medium wall thickness galvanised tube to BS EN 10255

Adjustment range: 30 – 45°

No drilling, welding or special tools required, simply tighten the included set screws with an Allen key or rachet

Ideal for use in handrail or guardrail systems as well as roof edge protection, barriers, racks, shelving, sports nets and much more

Specification

Weight N/A
Brand

Fitting Type

Handrail Fitting

Body Material

Malleable Cast Iron (HDG Galvanised)

Additional Information

Installation using Allen key, no special tools required.

Certification Availability

N/A
