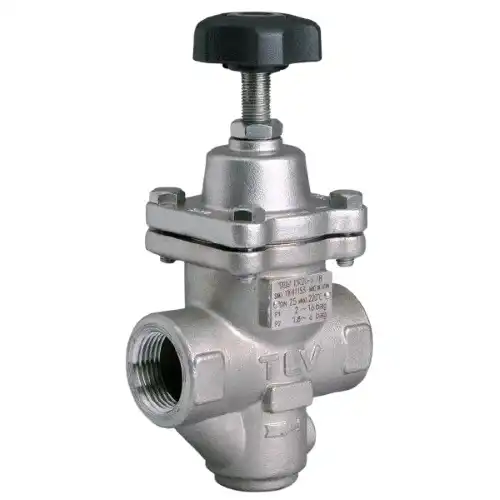

TLV DR20-10 Stainless Steel Direct Acting Pressure Reducing Valve
Lightweight, compact direct acting steam pressure reducing valve for use on small process equipment
Main body components made of stainless steel for high durability and corrosion resistance
Female BSPT taper threaded ends to DIN 2999
For installation horizontally with handle facing upward
Stable secondary pressure with high flow rate for its class
Built-in stainless steel screen ensures trouble-free operation
Easy to operated, adjust and clean
Capable of up to a 30:1 pressure reduction
Primary pressure range: 6 – 16 bar
Pressure adjustment range: 5.4 – 10 bar
Secondary pressure must not exceed 90% of the primary pressure
Maximum operating pressure: 16 bar (PN16)
Maximum operating temperature: 220°C
