PN16 Reinforced Graphite Ring Type Flange Gasket (1.5mm Thick)

Brand: Heksagon
SKU: 2820

£0.15£5.82 ex. VAT

About this product

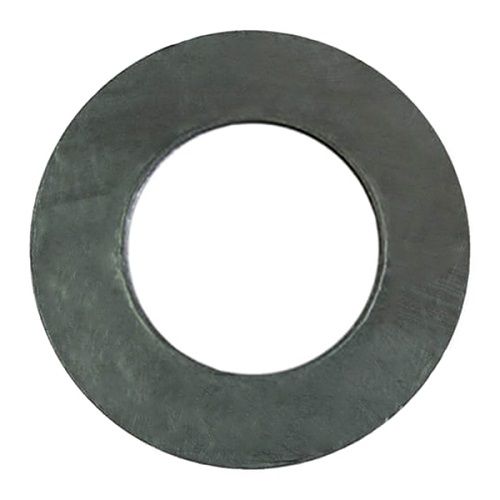

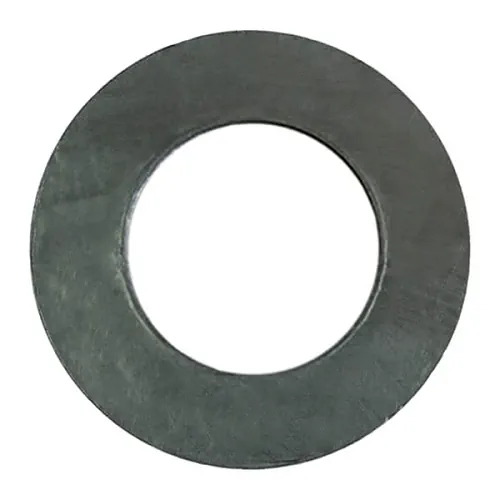

CPS 3002A Reinforced Graphite Ring Type Gasket For PN16 Flanges

The CPS 3002A sheet is an expanded graphite foil laminate reinforced with one or more thin (0.05mm) layers of flat stainless steel 316 (1.4408). These graphite sheets are soft and flexible, impermeable to liquids and gases and also offer excellent thermal shock resistance. Graphite doesn’t become brittle over time and is often used for high pressure and high temperature applications such as those often found in the chemical and petrochemical industries.

Suits NB PN16 pipe flanges to the BS EN 1092-1:2018 standard

Ring type or IBC gasket for installation inside the flange bolt circle

Gasket thickness: 1.5mm

Maximum operating pressure: 140 bar

Operating temperature range (Oxidising): -200°C – 500°C

Operating temperature range (Steam): -200°C – 650°C

Specification

Weight N/A
Brand

Seal/Gasket Type

IBC (Ring Type)

Body Material

Graphite & Stainless Steel 316

Pressure Class

PN16

Gasket Thickness

1.5mm

Certification Availability

N/A

Maximum Operating Pressure

140 bar

Operating Temperature Range

-200°C – 650°C

Additional Information

Made to order, non returnable.
