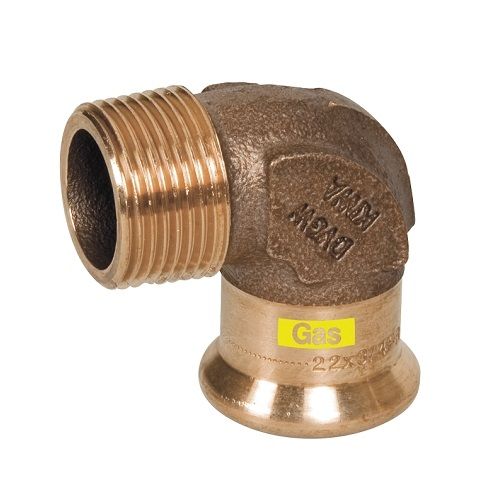

BSP M-Press Copper Gas Male Threaded 90 Degree Elbow
M-Profile press fitting made of CW024A copper, conforms to BS EN 1254-7
Supplied with yellow HNBR O-rings/seals for gas, to be installed by the end user
DVGW G260 approved for use on natural gas and liquid petroleum gas (LPG)
Male BSPT taper threaded end conforms to BS EN 10226-1
Fitting wall thickness: See datasheet
Supplied with gas warning labels, to be applied to exterior of fitting
Can be installed in seconds using a pressing machine, no soldering or hot working required
30-year guarantee provided by M-Press
Maximum operating pressure: 5 bar (PN5)
Operating temperature range: -20°C – 70°C (With HNBR seal)
Depending on stock, seals may be supplied factory fitted or loose for end user installation.
