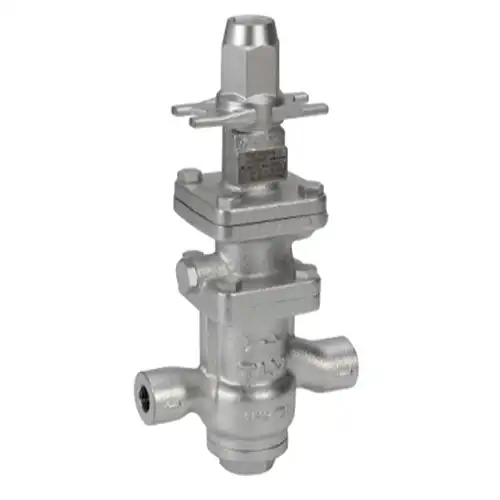

TLV COSR-16 Cast Iron Pressure Reducing Valve

Brand: TLV
SKU: 76COSR16

£981.00£1,072.00 ex. VAT

About this product

TLV COSR-16 Cast Iron Pressure Reducing Valve

Main body elements made of cast iron GG25

All major internal components made of stainless steel ensuring a long service life

Female BSPT taper threaded ends to DIN 2999

Self-aligning, shock absorbing spherical piston and advanced pilot regulator designs maintain secondary steam pressure accuracy, even during adverse process conditions

Stainless steel filter/screen for pilot valve guarantees ensures trouble free service

Internal secondary pressure sensing channel makes external sensing line unnecessary

EU Pressure equipment directive 2014/68/EU (PED) & CE Approved

Pressure adjustment range: 0.3 – 13.4 bar

Maximum operating pressure: 13 bar

Maximum operating temperature: 200°C

Specification

Weight N/A
Dimensions N/A
Brand

Valve Type

Pressure Reducing Valve

Connections

Female BSPT Taper Threaded (DIN 2999)

Operation

Pilot Operated

Body Material

Ductile Cast Iron GGG40.3

Major Internals Material

Stainless Steel

Spring Material

Carbon Steel

Maximum Operating Pressure

13 bar

Operating Temperature Range

0°C – 200°C

Maximum Discharge Capacity

See datasheet

Approvals

CE Marked (Quality). Pressure Equipment Directive (PED) 2014/68/EU Compliant (Safety).

Additional Information

Built-in filters.

Certification Availability

Contact Us (Chargeable, may increase delivery time.)
