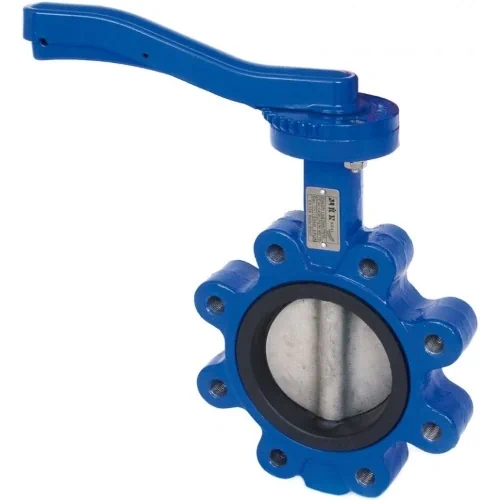

Albion Art135 Ductile Iron Lugged & Tapped Butterfly Valve

Brand:	Albion
SKU:	52ART135

£0.00 – £813.27 ex. VAT

Valve Size

Clear

About this product

Lugged & tapped (lug type) body made of epoxy coated ductile iron GGG40

Drillings to suit PN16 pipe flanges to the BS EN 1092-1:2018 standard

Stainless steel 316 disc with EPDM rubber seat

Stainless steel 420 stem with PTFE bushes & EPDM rubber O-rings

CE & WRAS (drinking water) approved

Comes with built-in ISO 5211 direct mounting bracket for installing an actuator

Manufactured to the BS EN 593:2017 standard for industrial butterfly valves (previously BS 5155)

Valve torque at zero pressure: See datasheet

Manual operation via locking lever

Maximum operating pressure: 16 bar (PN16) at up to 110°C

Operating temperature range: -10°C to 110°C

Weight	N/A
Dimensions	N/A
Brand	Albion
Valve Type	Lugged & Tapped Butterfly Valve
Connections	PN16 Flanged – BS EN 1092-1
Manufacturing Standard	Conforms to BS EN 593 (previously BS 5155) & MSS-SP-67
Operation	Manual Lever/Handle Operated
Body Material	Ductile Iron GGG40 (Epoxy Coated)
Disc Material	Stainless Steel 316
Stem Material	Stainless Steel 420
Seat Material	EPDM
Stem Packing Material	PTFE
Stem O-Ring Material	EPDM
Maximum Operating Pressure	16 bar
Operating Temperature Range	-10°C – 110°C
Approvals	CE Marked (Quality). WRAS approved (Potable water)
Certification Availability	2.1 Letter of Conformity Only – Must be requested at time of order
