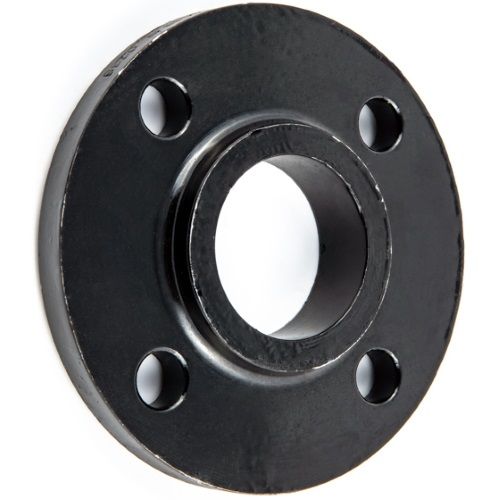

BS EN 1092-1 PN6 Mild Steel Raised Face Slip On Welding Flange
PN6 forged flange conforming to BS EN 1092-1 (previously BS 4504)
Made of black (self-colour) S235JR mild steel
Type 12 Slip-on bossed flange for fillet welding to steel pipe or tube
Bossed flange with raised sealing face, provides a stronger joint with the pipe and seal between flanges
Flange diameter x thickness: See datasheet
PCD (Pitch/bolt circle diameter): See datasheet
Bolt holes: See datasheet
Maximum operating pressure: 6 bar (PN6) at up to 200°C
Operating temperature range: -10°C – 300°C
Note: Operating pressure/temperature should not exceed the rating of the connected pipe
3.1 test certification available upon request
