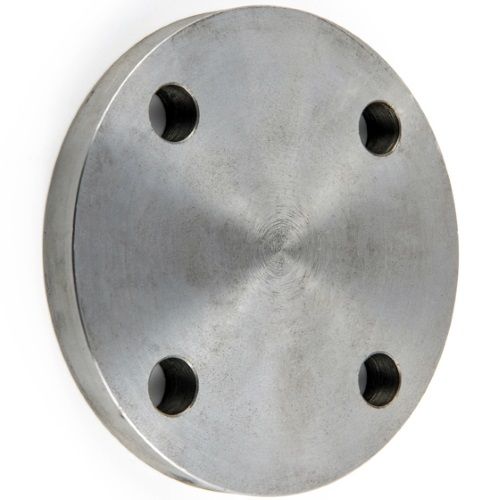

BS EN 1092-1 PN40 Flat Faced Blank Flange
PN40 plate flange conforming to BS EN 1092-1 (previously BS 4504)
Made of black (self-colour) S235JR mild steel plate
Blank/blind flange, used to cap or blank off the end of a flanged pipeline
Flange diameter x thickness: See datasheet
PCD (Pitch/bolt circle diameter): See datasheet
Bolt holes: See datasheet
BS 4504 Plate code: 105
Maximum operating pressure: 40 bar (PN40) at up to 200°C
Operating temperature range: -10°C – 475°C
Note: Operating pressure/temperature should not exceed the rating of the connected pipe
3.1 test certification available upon request
