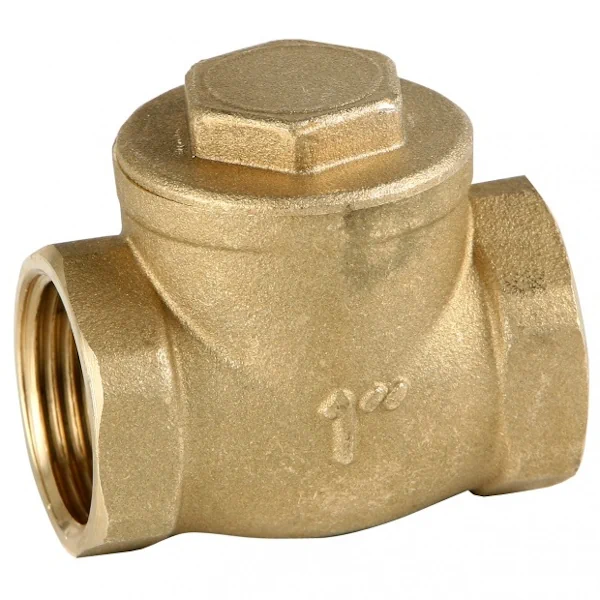

Genebre Art3185 Brass Swing Check Valve (PN12)

Brand: Genebre
SKU: 32ART3185

£4.52 – £108.90 ex. VAT

About this product

Genebre Art3185 Brass Swing Check Valve

Body and bonnet made of CW617N brass to UNE-EN 12165 with a fiber sealing gasket

Swing type closing mechanism with a CW617N brass disc

Female BSPP parallel threaded ends to ISO 228-1

Suitable for horizontal installation only

Maximum operating pressure: 12 bar (PN12) at up to 150°C

Operating temperature range: -20°C – 200°C

Datasheet download

Specification

Weight N/A
Dimensions N/A
Brand

Valve Type

Swing Check Valve
Connections

Female BSPP Parallel Threads – ISO 228-1, BS EN 10226-1
Body Material

Brass (Chrome Plated)
Closing Mechanism Material

Brass (Disc)
Seat Material

Fibre
Maximum Operating Pressure

8 bar
Operating Temperature Range

-20°C – 200°C
Additional Information

For horizontal installation only
Certification Availability

N/A
