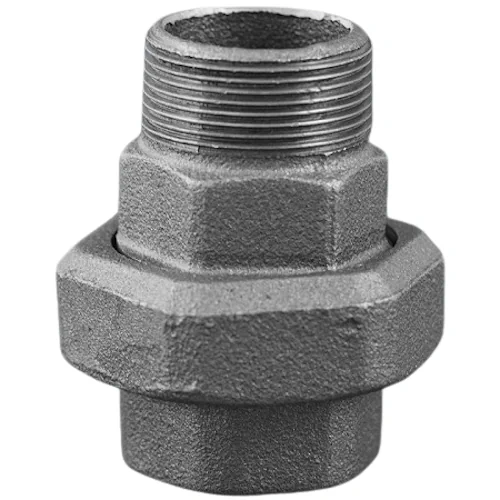

Black Malleable Iron Male/Female Cone Seat Union (Iron/Iron)

Brand:	Jinan Meide
SKU:	2123

£3.31 – £54.83 ex. VAT

Fitting Size

Clear

About this product

Pipe fitting cast in black (self-colour) malleable iron

Iron to iron cone seats

Male/female BSPT taper threaded ends to ISO 7-1

Manufactured to the BS EN 10242:1995 by Jinan Meide

BSI Kitemarked

For installation with BS EN 10255 steel pipe & tube

Ideal for natural gas systems, heating, sprinkler systems, oil & diesel lines and many others

Maximum operating pressure: 25 bar (PN25) at up to 120°C

Maximum operating temperature: 200°C at up to 20 bar (PN20)

Operating temperature range: -20°C – 200°C

Weight	N/A
Brand	Jinan Meide
Connections	Male BSPT Taper x Female BSPT Taper Threaded (ISO 7-1)
Manufacturing Standard	BS EN 10242
Body Material	Self Colour (Black) Malleable Cast Iron
Sealing Face	Iron/Iron
Maximum Operating Pressure	25 bar
Operating Temperature Range	-20°C – 200°C
Approvals	BSI Kitemarked
Certification Availability	2.1 Letter of Conformity Only – Must be requested at time of order
