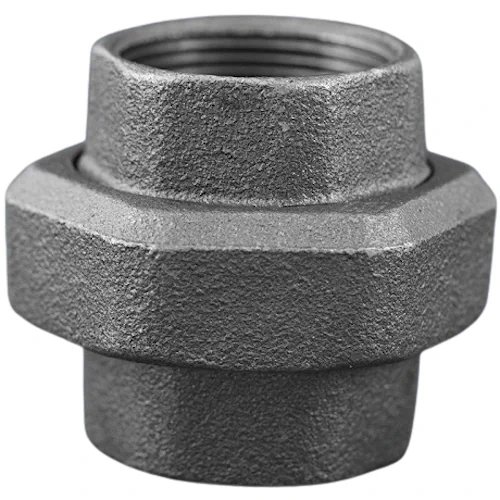

Jinan Meide Black Malleable Iron Female Bronze/Iron Cone Seat Union
Pipe fitting cast in black (self-colour) malleable iron
Bronze to iron (single bronze) cone seats, also known as a railroad union
Female BSPT taper threaded ends to ISO 7-1
Manufactured to the BS EN 10242:1995 by Jinan Meide
BSI Kitemarked
For installation with BS EN 10255 steel pipe & tube
Ideal for natural gas systems, heating, sprinkler systems, oil & diesel lines and many others
Maximum operating pressure: 25 bar (PN25) at up to 120°C
Maximum operating temperature: 200°C at up to 20 bar (PN20)
Operating temperature range: -20°C – 200°C
