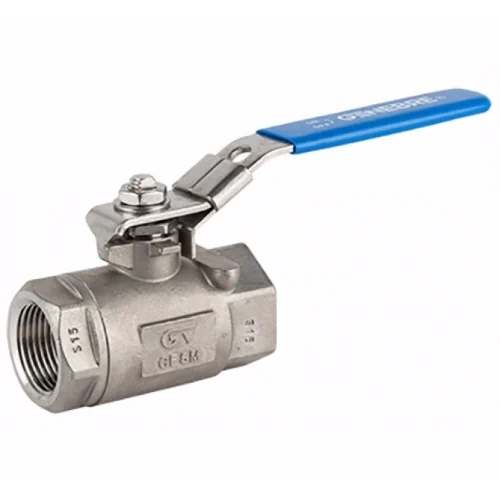

Genebre Art2008 Reduced Bore Stainless Steel Ball Valve (PN140)

Brand: Genebre
SKU: 51ART2008

£14.56£70.37 ex. VAT

About this product

Genebre Art2008 Full Bore Stainless Steel Ball Valve

Lever handle operated ball valve with a reduced interior bore

2-Piece body made of shot blasted stainless steel 1.4408 (CF8M) sealed with a PTFE gasket

Female BSPP parallel threaded ends conforming to ISO 7-1 (EN 10226-1)

Ball made of stainless steel 1.4408 with ball seats/seals in PTFE & graphite

Blow-out proof stainless steel 316 stem with stainless steel 304 stem packing

Built-in stainless steel 304 locking lever with a vinyl cover

Maximum operating pressure: 140 bar (PN140) at up to 25°C

Operating temperature range: -25°C – 180°C

Specification

Weight N/A
Brand

Valve Type

2-Piece Reduced Bore Ball Valve

Connections

Female BSPP Parallel Threads – ISO 228-1, BS EN 10226-1

Operation

Manual Lever Handle Operated

Body Material

Stainless Steel 1.4408 (Shot Blasted)

Ball Material

Stainless Steel 1.4408

Stem Material

Stainless Steel 316

Body Gasket Material

PTFE

Ball Seat Material

PTFE + 15% Graphite

Stem Packing Material

Stainless Steel 304

Maximum Operating Pressure

140 bar

Operating Temperature Range

-25°C – 180°C

Additional Information

Blow-out proof stem

Certification Availability

N/A
