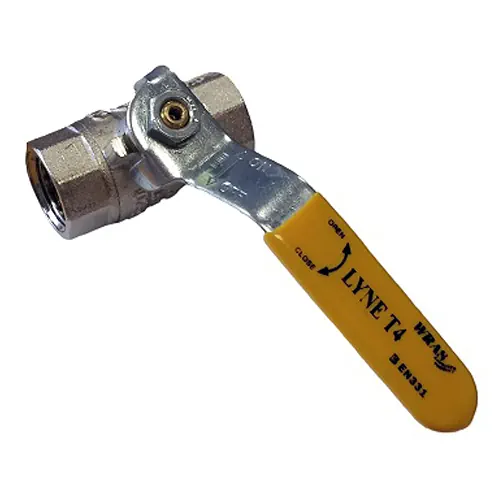

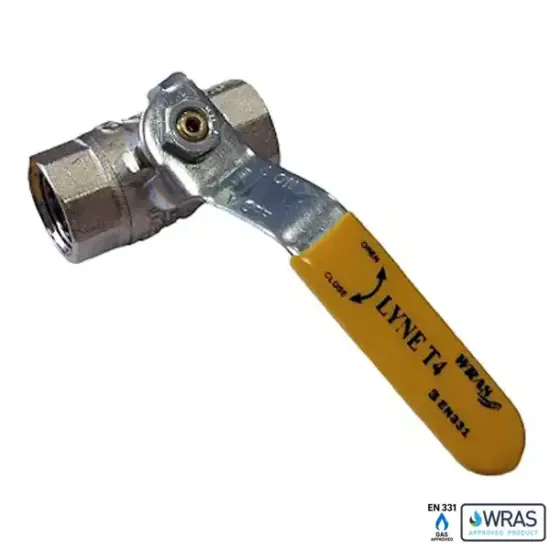

Lyne T4 Full Bore Brass Ball Valve

Brand: Lyne
SKU: 3202

£4.58£255.00 ex. VAT

About this product

Lyne T4 Full Bore Brass Ball Valve

Full bore 2-piece nickel plated brass body

Female BSPT taper threaded ends conforming to (ISO 7-1) BS EN 10226-2

Chrome plated brass ball with PTFE seats

Anti blow-out stem in brass with HNBR O-rings and PTFE seal

WRAS (drinking water) and EN331 (gas) approved

Manual operation via lever handle

Maximum operating pressure (water): 50 bar (PN50) at up to 50°C

Maximum operating pressure (gas): 20 bar (PN20) at up to 60°C

Operating temperature range: -20°C – 150°C (Gas: 60°C max)

Specification

Weight N/A
Dimensions N/A
Brand

Valve Type

2-Piece Full Bore Ball Valve

Connections

Female BSPT Taper Threads – ISO 7-1, BS EN 10226-2

Operation

Manual Lever/Handle Operated

Body Material

Brass (Nickel Plated)

Ball Material

Brass (Chrome Plated)

Stem Material

Brass

Ball Seat Material

PTFE

Stem Packing Material

PTFE

Stem O-Ring Material

HNBR

Maximum Operating Pressure

40 bar (Gas – 20 bar)

Operating Temperature Range

-20°C – 150°C (Gas -10°C – 60°C)

Approvals

BS EN 331 Approved (Natural gas). WRAS approved (Potable water)

Additional Information

Anti blow out stem.

Certification Availability

N/A
