Genebre Art2014 Full Bore Stainless Steel Ball Valve (PN63)

Brand: Genebre
SKU: 51ART2014

£8.96£179.81 ex. VAT

About this product

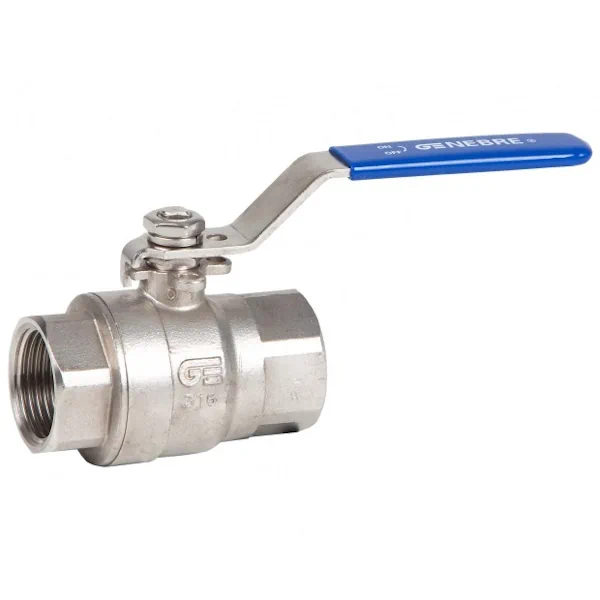

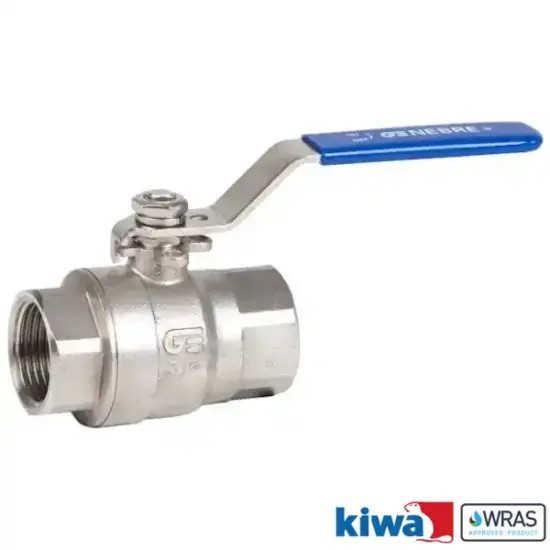

Genebre Art2014 Full Bore Stainless Steel Ball Valve

Lever operated ball valve with a full interior bore

2-Piece body made of shot blasted stainless steel 1.4408 (CF8M) sealed with a PTFE gasket

Female BSPP parallel threaded ends conforming to ISO 7-1 (BS EN 10226-1)

Polished stainless steel 1.4408 ball with ball seats/seals made of PTFE & graphite

Blow-out proof stem in stainless steel 316 with stainless steel 304 stem packing and FKM O-rings

Built-in stainless steel 304 locking lever with a vinyl sleeve

Maximum operating pressure: 63 bar (PN63) at up to 50°C

Operating temperature range: -25°C – 180°C

Specification

Weight N/A
Brand

Valve Type

2-Piece Full Bore Ball Valve

Connections

Female BSPP Parallel Threads – ISO 228-1, BS EN 10226-1

Operation

Manual Lever Handle Operated

Body Material

Stainless Steel 1.4408 (Shot Blasted)

Ball Material

Stainless Steel 1.4408 (Polished)

Stem Material

Stainless Steel 316

Ball Seat Material

PTFE + 15% Graphite

Stem Packing Material

Stainless Steel 304

Stem O-Ring Material

FKM

Maximum Operating Pressure

63 bar

Operating Temperature Range

-25°C – 180°C

Additional Information

Blow-out proof stem

Certification Availability

N/A
