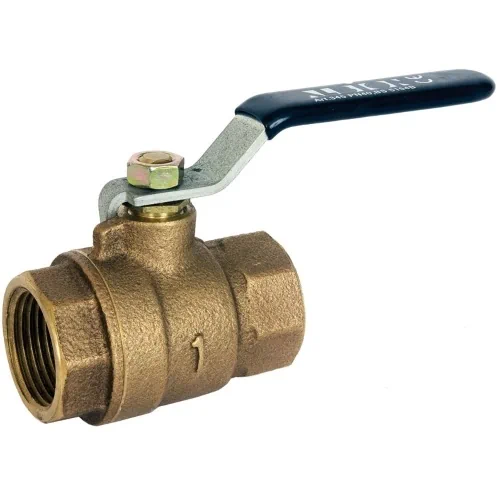

Albion Art345 Full Bore Bronze Ball Valve

Brand:	Albion
SKU:	31ART345

£13.43 – £82.90 ex. VAT

Valve Size

Clear

About this product

Full bore ball valve with 2-piece bronze body

Female BSPT taper threaded ends conforming to ISO 7/1

Chrome plated brass ball with PTFE ball seats/seals

Blow-out proof stem in brass with PTFE stem packing

WRAS Approved for potable water

CE approved

Manual operaton via steel lever handle

Maximum operating pressure: 40 bar (PN40) up to 100°C

Operating temperature range: -10°C – 140°C

Weight	N/A
Dimensions	N/A
Brand	Albion
Valve Type	2-Piece Full Bore Ball Valve
Connections	Female BSPT Taper Threads – ISO 7-1, BS EN 10226-1
Manufacturing Standard	Conforms to MSS SP 110
Operation	Manual Lever/Handle Operated
Body Material	Bronze (ASTM B62)
Ball Material	Brass (Chrome Plated)
Stem Material	Brass
Ball Seat Material	PTFE
Stem O-Ring Material	PTFE
Maximum Operating Pressure	40 bar
Operating Temperature Range	-10°C – 140°C
Approvals	CE Marked (Quality). WRAS Approved (Potable water).
Additional Information	Blow-out proof stem. Solid ball
Certification Availability	2.1 Letter of Conformity Only – Must be requested at time of order
