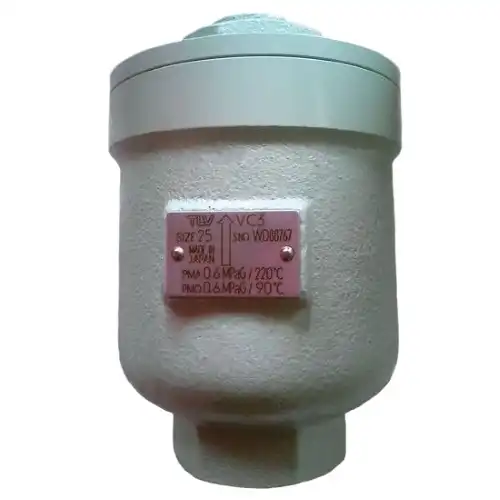

1″ TLV VC3 Cast Iron Automatic Air Vent

Brand: TLV
SKU: 76VC3025
Availability:In stock (can be backordered)

£268.00 ex. VAT

In stock (can be backordered)

About this product

1″ TLV VC3 Cast Iron Automatic Air Vent

Float-type mechanical valve automatically vents air from water systems during start-up and operation

Body and top cover made of cast iron FC250, sealed with a PTFE gasket

Female BSPT taper threaded ends to DIN 2999 (1″ Inlet x 3/8″ Outlet)

Designed for use with hot and cold water

Simple construction for trouble free operation and long service life

Stainless steel 316 free float and valve seat with NBR seat contact guarantees a tight seal when vent is closed

Single moving part, the free float, eliminates concentrated wear for a long service life

Functions as a vacuum breaker as well as an air vent

Suitable for vertical installation only

Discharging capacity: Up to 90 l/min

Minimum operating pressure: 1 bar

Maximum operating pressure: 6 bar

Maximum operating temperature: 90°C

Specification

Weight 1.8 kg
Dimensions 131 × 88 × 131 mm
Valve Size

1" NB

Brand

Valve Type

Air Vent

Connections

Female BSPT Taper Threaded (DIN 2999)

Operation

Free Float (Mechanical)

Body Material

Cast Iron FC250

Float Material

Stainless Steel 316

Body Gasket Material

PTFE

Seat Material

NBR Rubber & Stainless Steel 303

Seat Gasket Material

PTFE

Maximum Operating Pressure

6 bar

Operating Temperature Range

0°C – 90°C

Maximum Discharge Capacity

Up to 90kg/h

Additional Information

3/8" Female BSPP Outlet. Minimum operating pressure 1 bar.
