TLV SA3 Brass Automatic Air Vent

Brand: TLV
SKU: 76SA3

£118.00£123.00 ex. VAT

About this product

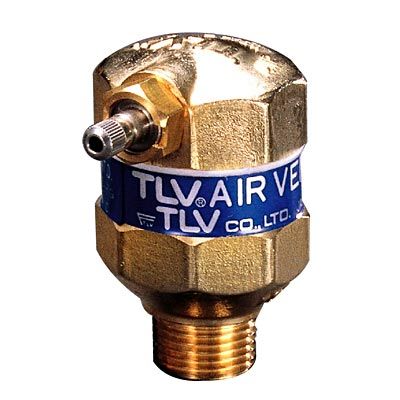

TLV SA3-3 Compact Brass Automatic Air Vent

Compact vent with a body made of brass (C3771)

Male BSPT taper threaded ends to DIN 2999

Discharges air and gas from lines of various liquids, can also act as a vacuum breaker when draining water lines

Suitable for small air conditioning equipment such as fan coils and radiators

Auxiliary valve seat enables maintenance during operation

Provides a tight seal, even at extremely low pressure (Minimum: 0.1 bar)

For vertical installation only

Venting capacity: Up to 5.4 l/min

Minimum operating pressure: 0.1 bar

Maximum operating pressure: 1 bar

Maximum operating temperature: 100°C

Specification

Weight N/A
Dimensions N/A
Brand

Valve Type

Air Vent

Connections

Male BSPT Taper Threaded (DIN 2999)

Operation

Free Float (Mechanical)

Body Material

Brass C3771

Maximum Operating Pressure

See datasheet

Operating Temperature Range

0°C – 100°C

Additional Information

Vertical installation only. Minimum opening pressure 0.1 bar. Customer to specify required orifice size.

Certification Availability

Contact Us (Chargeable, may increase delivery time.)
