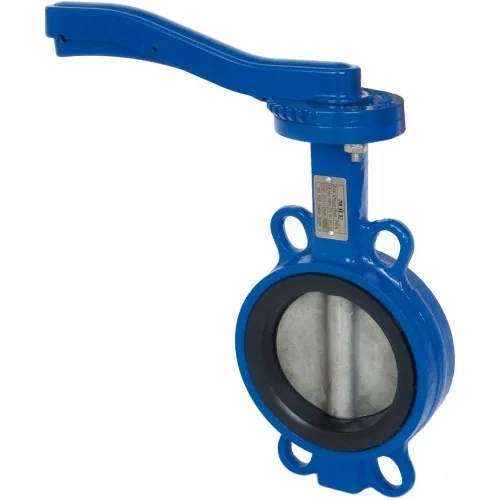

Albion Art120 Ductile Iron Wafer Type Butterfly Valve

Brand:	Albion
SKU:	52ART120

£56.11 – £269.15 ex. VAT

Valve Size

Clear

About this product

Wafer type body made of epoxy coated ductile iron GGG40

For installation with steel PN10 & PN16 flanges to BS EN 1092-1:2018 or Class-150 flanges to ANSI B16.5

Stainless steel 316 disc with NBR rubber seat

Stainless steel stem with PTFE bushes & EPDM rubber O-rings

CE approved

Comes with built-in ISO 5211 direct mounting bracket for installing an actuator

Valve torque at zero pressure: See datasheet

Manual operation via locking lever

Manufactured to the BS EN 593:2017 standard for industrial butterfly valves (previously BS 5155)

Maximum operating pressure: 16 bar (PN16) at up to 90°C

Operating temperature range: -10°C to 90°C

Weight	N/A
Dimensions	N/A
Brand	Albion
Valve Type	Wafer Butterfly Valve
Connections	Wafer Type – PN10 & PN16 (BS EN 1092-1), class 150 (ASME B16.5)
Manufacturing Standard	Conforms to BS EN 593 (previously BS 5155)
Operation	Manual Lever/Handle Operated
Body Material	Ductile Iron GGG40 (Epoxy Coated)
Disc Material	Stainless Steel 316
Stem Material	Stainless Steel 410/411 (Upper/Lower)
Seat Material	NBR
Stem Packing Material	PTFE
Stem O-Ring Material	PTFE
Maximum Operating Pressure	16 bar
Operating Temperature Range	-10°C – 90°C
Approvals	CE Marked (Quality).
Certification Availability	2.1 Letter of Conformity Only – Must be requested at time of order
