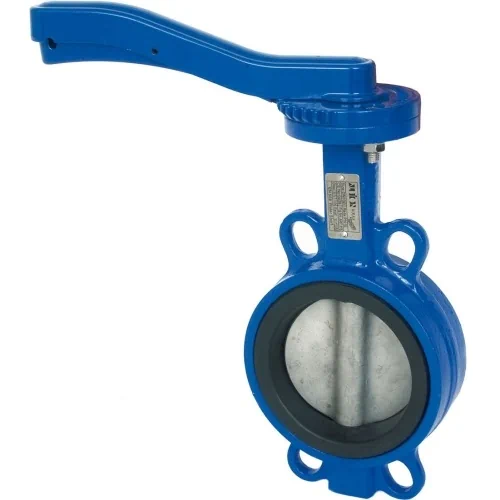

Albion Art115 Ductile Iron Wafer Type Butterfly Valve

Brand: Albion
SKU: 52ART115

£59.33£748.24 ex. VAT

About this product

Albion Art115 Ductile Iron Wafer Type Butterfly Valve (EPDM Liner)

Wafer type body made of epoxy coated ductile iron GGG40

For installation with steel PN10 & PN16 flanges to BS EN 1092-1:2018 or Class-150 flanges to ANSI B16.5

Butterfly disc made of stainless steel 316 with an EPDM rubber seat

Stainless steel 420 stem with PTFE bushes & EPDM rubber O-rings

CE & WRAS (drinking water) approved

Comes with built-in ISO 5211 direct mounting bracket for installing an actuator

Valve torque at zero pressure: See datasheet

Manual operation via locking lever

Manufactured to the BS EN 593:2017 standard for industrial butterfly valves (previously BS 5155)

Maximum operating pressure: 16 bar (PN16) at up to 110°C

Operating temperature range: -10°C to 110°C

Specification

Weight N/A
Dimensions N/A
Brand

Valve Type

Wafer Butterfly Valve

Connections

Wafer Type – PN10 & PN16 (BS EN 1092-1), class 150 (ASME B16.5)

Manufacturing Standard

Conforms to BS EN 593 (previously BS 5155) & MSS-SP-67

Operation

Manual Lever/Handle Operated

Body Material

Ductile Iron GGG40 (Epoxy Coated)

Disc Material

Stainless Steel 316

Stem Material

Stainless Steel 420

Seat Material

EPDM

Stem Packing Material

PTFE

Stem O-Ring Material

PTFE

Maximum Operating Pressure

16 bar

Operating Temperature Range

-10°C – 110°C

Approvals

CE Marked (Quality). WRAS approved (Potable water)

Certification Availability

2.1 Letter of Conformity Only – Must be requested at time of order
