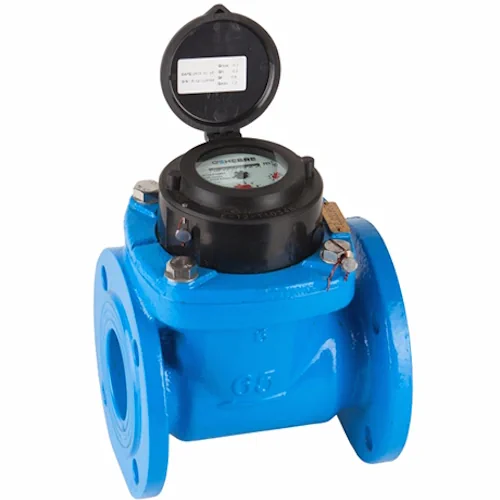

Genebre Art6060 Cold Water Meter (PN16 Flanged)

Brand: Genebre
SKU: 51ART6060

£194.13£1,161.66 ex. VAT

About this product

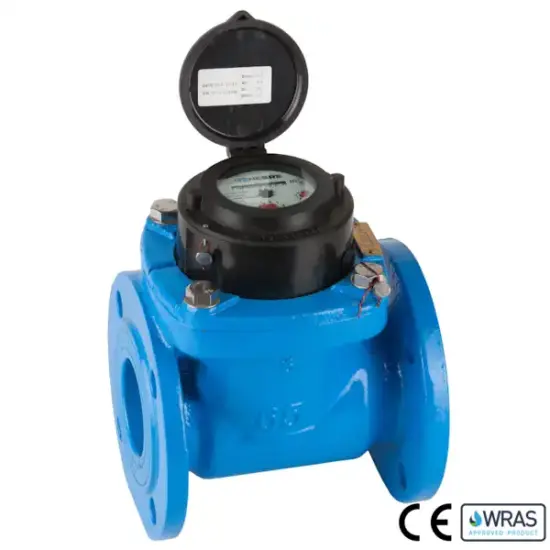

Genebre Art 6060 WOLTMANN Cold Water Meter With PN16 Flanged Ends

For measuring cold water consumption

Dry-dial, magnetic drive

Suitable for horizontal or vertical installation, though we recommended horizontal with the register facing upwards

Measuring accuracy conform to ISO 4064 standard, B class

PN16 flanged ends conforming to ISO 7005

Low pressure loss

Easy maintenance and replacement of the measuring mechanism without removing the meter from the pipeline

2 sockets for pulse transmitter connection

Sphere protection IP68

Internal and external corrosion protection

Unaffected by external magnetic fields

Maximum operating temperature: 30°C

Maximum operating pressure: 16 bar (PN16)

Specification

Weight N/A
Brand

Valve Type

Water Meter

Connections

PN16 Flanged Ends – ISO 7005

Manufacturing Standard

Conforms to ISO 4064-1

Flange Diameter

See datasheet

Flange PCD

See datasheet

Flange Bolt Holes

See datasheet

Maximum Operating Pressure

16 bar

Operating Temperature Range

0°C – 30°C

Additional Information

Horizontal or vertical installation. Dry dial. Magnetic drive. 2 Pulse transmitter connectors included

Certification Availability

2.1 Letter of Conformity Only – Must be requested at time of order
