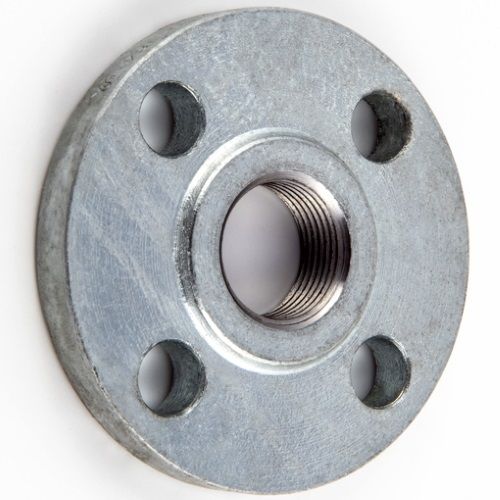

ANSI B16.5 Class-150 Galvanised Carbon Steel Raised Face BSPT Threaded Flange
Class-150 forged flange conforming to ASME/ANSI B16.5:2017
Made of carbon steel to ASTM A105 with a HDG galvanised finished
Female BSPT taper threaded
Bossed flange with raised sealing face, provides a stronger joint with the pipe and seal between flanges
Flange diameter x thickness: See datasheet
PCD (Pitch/bolt circle diameter): See datasheet
Bolt holes: See datasheet
Maximum operating pressure: 19.6 bar (up to 38°C)
Operating temperature range: -29°C – 538°C
Note: Operating pressure/temperature should not exceed the rating of the connected pipe
