ANSI B16.5 Class 150 Carbon Steel BSP Threaded Flange

Brand: ValvesTubesFittings
SKU: 2700

£4.11£42.84 ex. VAT

About this product

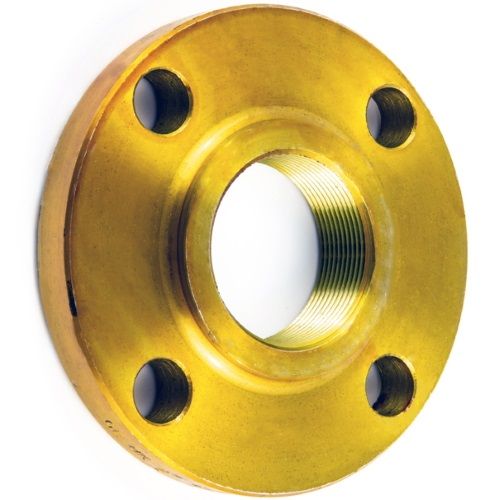

ANSI B16.5 Class-150 Carbon Steel Raised Face BSPT Threaded Flange

Class-150 forged flange conforming to ASME/ANSI B16.5:2017

Made of black (self-colour) carbon steel to ASTM A105 with a yellow anti-rust coating

Female BSPT taper threaded

Bossed flange with raised sealing face, provides a stronger joint with the pipe and seal between flanges

Flange diameter x thickness: See datasheet

PCD (Pitch/bolt circle diameter): See datasheet

Bolt holes: See datasheet

Maximum operating pressure: 19.6 bar (up to 38°C)

Operating temperature range: -29°C – 538°C

Note: Operating pressure/temperature should not exceed the rating of the connected pipe

Specification

Weight N/A
Dimensions N/A
Brand

Flange Type

Forged Flange

Connections

Female BSPT Taper Threaded – ISO 7-1, BS EN 10226-2

Manufacturing Standard

ASME B16.5

Body Material

ASTM A105N Carbon Steel

Pressure Class

ANSI 150

Sealing Face

Raised Face x Bossed

Certification Availability

3.1 Material test certificate to BS EN 10204. (Must be requested at time of order)

Maximum Operating Pressure

19.6 bar

Operating Temperature Range

-29°C – 538°C

Flange Diameter

See datasheet

Flange PCD

See datasheet

Flange Thickness

See datasheet

Flange Bolt Holes

See datasheet
