ANSI B16.5 Class 150 Carbon Steel Blank Flange

Brand: ValvesTubesFittings
SKU: 2703

£2.10£513.00 ex. VAT

About this product

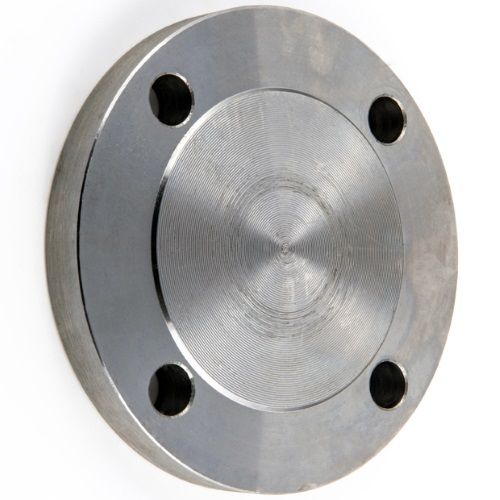

ANSI B16.5 Class-150 Carbon Steel Raised Face Blank Flange

Class-150 forged flange conforming to ASME/ANSI B16.5:2017

Made of black (self-colour) carbon steel to ASTM A105

Blank/blind flange, used to cap or blank off the end of a flanged pipeline

Raised sealing face, increases pressure on the gasket for a strong seal

Flange diameter x thickness: See datasheet

PCD (Pitch/bolt circle diameter): See datasheet

Bolt holes: See datasheet

Maximum operating pressure: 19.6 bar (up to 38°C)

Operating temperature range: -29°C – 538°C

Note: Operating pressure/temperature should not exceed the rating of the connected pipe

Specification

Weight N/A
Dimensions N/A
Brand

Flange Type

Forged Flange

Connections

Blank

Manufacturing Standard

ASME B16.5

Body Material

ASTM A105N Carbon Steel

Pressure Class

ANSI 150

Sealing Face

Raised Face x Bossed

Certification Availability

3.1 Material test certificate to BS EN 10204. (Must be requested at time of order)

Maximum Operating Pressure

19.6 bar

Operating Temperature Range

-29°C – 538°C

Flange Diameter

See datasheet

Flange PCD

See datasheet

Flange Thickness

See datasheet

Flange Bolt Holes

See datasheet
