Albion Art50 Full Bore DZR Brass Ball Valve

Brand: Albion
SKU: 31ART50

£3.42£43.42 ex. VAT

About this product

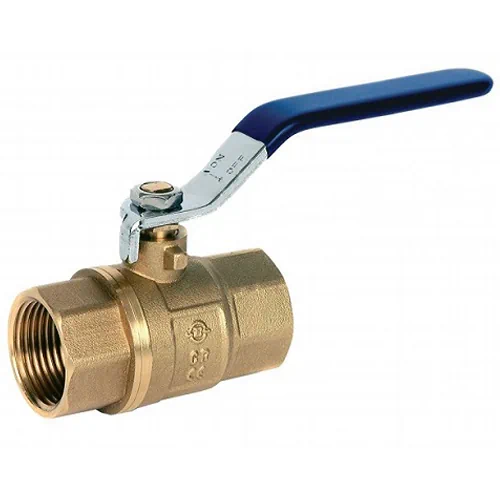

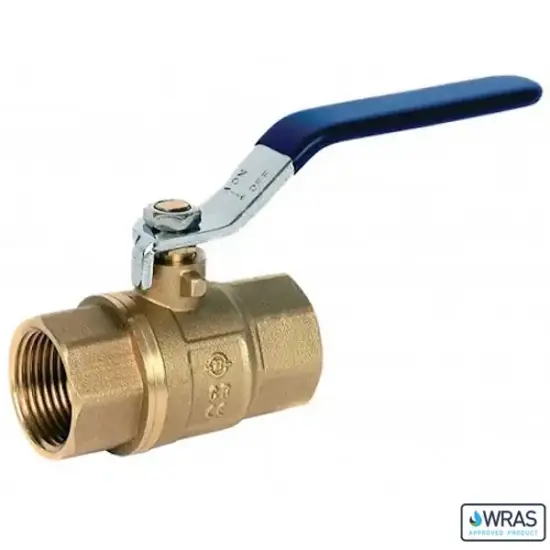

Albion Art50 DZR Brass Full Bore Ball Valve

Full bore 2-piece ball valve with DZR (dezincification resistant) brass body

Female BSPT taper threaded ends conforming to ISO 7-1

Chrome plated brass ball with PTFE ball seats

Anti blow-out brass stem with NBR O-ring and PTFE stem packing

WRAS approved, suitable for use with drinking water in the UK

Manual operation via steel lever handle, suitable for use with locking levers

Maximum operating pressure: 40 bar (PN40) at up to 130°C

Operating temperature range: -20°C – 130°C

Specification

Weight N/A
Dimensions N/A
Brand

Valve Type

2-Piece Full Bore Ball Valve

Connections

Female BSPT Taper Threads – ISO 7-1, BS EN 10226-1

Operation

Manual Lever/Handle Operated

Body Material

DZR (Dezincification resistant) Brass

Ball Material

Brass (Chrome Plated)

Stem Material

Brass

Ball Seat Material

PTFE

Stem Packing Material

PTFE

Stem O-Rings Material

NBR

Maximum Operating Pressure

40 bar

Operating Temperature Range

-10°C – 130°C

Approvals

WRAS approved (Potable water)

Additional Information

Suitable for tee handles & locking levers

Certification Availability

N/A
