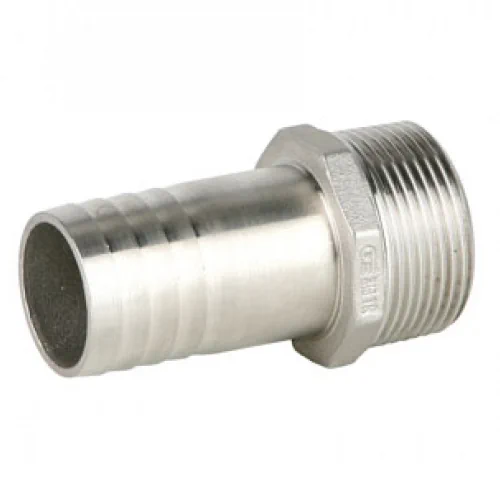

Albion HA Stainless Steel 316 Hosetail Adapter

Brand: Albion
SKU: 5120HT

£1.38£48.85 ex. VAT

About this product

Albion HA Stainless Steel 316 Hosetail Adapter

Pipe fitting made of cast stainless steel 316 (CF8M)

Male BSPT taper threaded to ISO 7-1 (EN 10226-1)

Hosetail diameter: 4.5mm

Wall thickness: 1.5mm

CE Approved

Manufactured to ISO 4144:2003

Maximum operating pressure: 20 bar (PN20) at up to 40°C

Operating temperature range: -20°C – 220°C

Material certificates available on request

Specification

Weight N/A
Brand

Fitting Type

Hose Adapter (Hosetail)

Connections

Male BSP Taper Threaded – (ISO 7-1, BS EN 10226-1)

Manufacturing Standard

ISO 4144

Body Material

Stainless Steel 316

Approvals

CE Marked

Maximum Operating Pressure

20 bar

Operating Temperature Range

-20°C – 220°C

Certification Availability

2.1 Letter of Conformity Only – Must be requested at time of order
