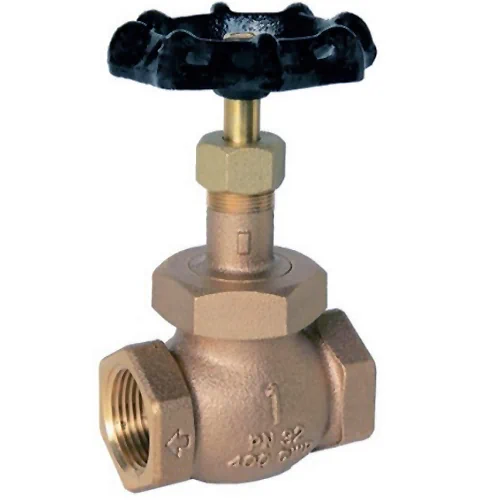

Albion Art350 Bronze Globe Valve

Brand:	Albion
SKU:	31ART350

£33.20 – £223.21 ex. VAT

Valve Size

Clear

About this product

Bronze body, disc and union bonnet

Female BSPT taper threaded ends to ISO 7/1

Renewable PTFE disc with brass disc nut

Rising stem made of DZR (dezincification resistant) brass

CE approved

Manufactured to the BS EN 12288:2010 standard for industrial copper alloy gate valves (previously BS 5154)

Suitable for use with saturated steam

Manual operation via cast iron handwheel

Maximum operating pressure: 32 bar (PN32) up to 100°C

Operating temperature range: -10°C – 200°C

Weight	N/A
Dimensions	N/A
Brand	Albion
Valve Type	Globe Valve
Connections	Female BSPT Taper Threads – ISO 7-1, BS EN 10226-1
Manufacturing Standard	Conforms to BS EN 12288 (Previously BS 5154)
Operation	Manual Handwheel Operated
Body Material	Bronze
Disc Material	Bronze
Stem Material	DZR (Dezincification resistant) Brass
Seat/Disc Rings Material	PTFE
Stem O-Ring Material	PTFE
Maximum Operating Pressure	32 bar
Operating Temperature Range	-10°C – 200°C
Approvals	CE Marked (Quality).
Additional Information	Union bonnet. Rising stem. Brass disc nut. Suitable for saturated steam
Certification Availability	2.1 Letter of Conformity Only – Must be requested at time of order
