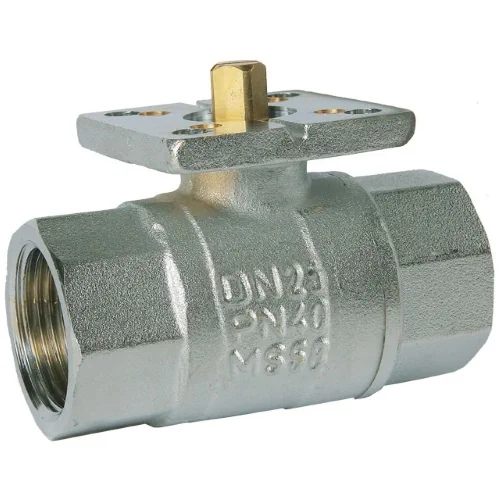

Albion Art160 Full Bore Direct Mount Brass Ball Valve

Brand: Albion
SKU: 3104

£29.59£567.65 ex. VAT

About this product

Albion Art160 Full Bore Direct Mount Brass Ball Valve

Full bore ball valve with a 2-piece body design in nickel plated brass

Female BSPP parallel threaded ends conforming to ISO 228-1

Chrome plated brass ball with PTFE ball seats and O-rings

CE Approved

ISO 5211 Direct mount for actuator

Low operating torque design, valve torque at zero pressure: See datasheet

Nickel plated brass stem with PTFE washers and FKM (Viton) O-rings

Maximum operating pressure: 40 bar (PN40) at up to 95°C

Operating temperature range: -20°C – 120°C

Specification

Weight N/A
Dimensions N/A
Brand

Valve Type

2-Piece Full Bore Ball Valve

Connections

Female BSPP Parallel Threads – ISO 228-1, BS EN 10226-1

Operation

Actuation (via ISO 5211 Direct Mount)

Body Material

Brass (Nickel Plated)

Ball Material

Brass (Chrome Plated)

Stem Material

Brass (Nickel Plated)

Ball Seat Material

PTFE

Stem O-Ring Material

FKM (Viton)

Maximum Operating Pressure

40 bar

Operating Temperature Range

-20°C – 120°C

Approvals

CE Marked (Quality)

Additional Information

Low operating torque design

Certification Availability

N/A
