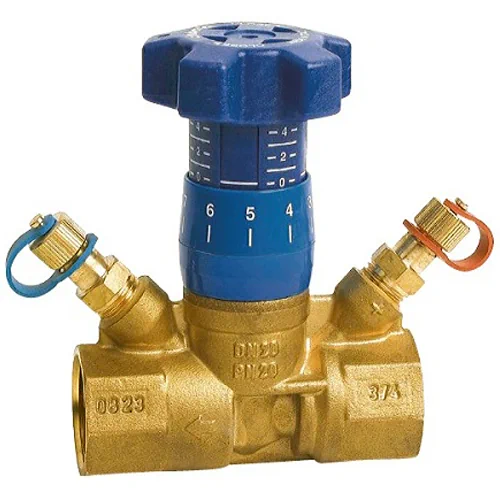

Albion Art28 DZR Brass Variable Orifice Commissioning Valve

Brand: Albion
SKU: 31ART28

£65.53£73.26 ex. VAT

About this product

Albion Art28 DZR Brass Variable Orifice Commissioning Valve

Double regulating valve with DZR (CW602N) brass body, bonnet and EPDM body gasket

Female BSPP parallel threaded ends conforming to ISO 7/1

Shutter made of DZR brass with an EPDM seat providing a tight shut off

Non-rising stem in DZR brass with EPDM O-rings

Factory fitted with x2 DZR brass binder test points

Manual handwheel operated with position indicator

WRAS Approved for potable water

Conforms to BS 5154:1991 & BS 7350:1990

Maximum operating pressure: 25 bar (PN25) at up to 100°C

Operating temperature range: -10°C – 120°C

Backed by 5 year manufacturers guarantee

Specification

Weight N/A
Dimensions N/A
Brand

Valve Type

Variable Commissioning Valve

Connections

Female BSPP Parallel Threads – ISO 7-1, BS EN 10226-1

Manufacturing Standard

Conforms to BS 5154 & BS 7350

Operation

Manual Handwheel Operated

Body Material

DZR (Dezincification resistant) Brass

Cone

DZR (Dezincification resistant) Brass

Stem Material

DZR (Dezincification resistant) Brass

Cone Seat Material

EPDM

Stem O-Ring Material

EPDM

Maximum Operating Pressure

20 bar

Operating Temperature Range

-10°C – 120°C

Approvals

CE Marked (Quality). WRAS Approved (Potable water).

Additional Information

Built-in position indicator. Supplied with 2 brass pressure test points and extensions. 5-Year manufacturers guarantee.

Certification Availability

N/A
