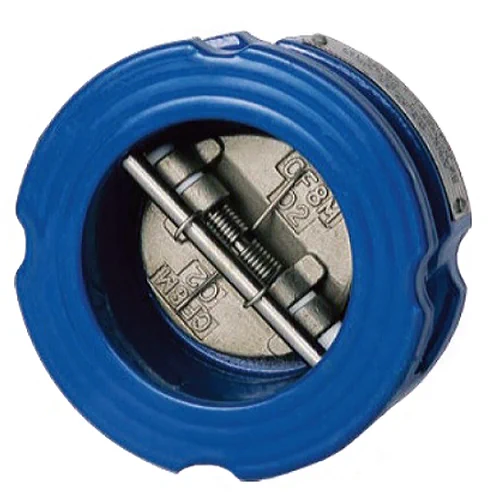

Albion Art121 Cast Iron Dual Plate Wafer Check Valve

Brand:	Albion
SKU:	31ART121

£57.12 – £347.50 ex. VAT

Valve Size

Clear

About this product

Dual plate wafer type check valve with epoxy coated cast iron (GG25) body

For installation between pipe flanges to BS EN 1092-1 (PN10 & PN16) or ASME/ANSI B16.5 (Class-150)

Stainless steel disc and spring closing mechanism with EPDM seat

CE approved

Maximum operating pressure: 16 bar (PN16) at up to 120°C

Operating temperature range: -10°C to 120°C

Weight	N/A
Dimensions	N/A
Brand	Albion
Valve Type	Spring Check Valve
Connections	Wafer Type – PN10 & PN16 (BS EN 1092-1), class 150 (ASME B16.5)
Body Material	Cast Iron GG25 (Epoxy Coated)
Closing Mechanism Materials	Stainless Steel 316 (Disc & Spring)
Seat Material	EPDM
Outer Diameter	See datasheet
Thickness	Cast Bronze+BF5
Maximum Operating Pressure	16 bar
Operating Temperature Range	-10°C – 180°C
Approvals	CE Marked (Quality)
Additional Information	Dimensions conform to BS EN 558-1 (Series 16)
Certification Availability	N/A
