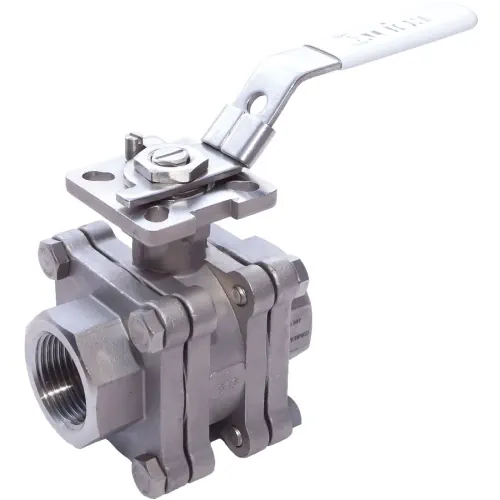

Albion Art995T Full Bore Stainless Steel Fire Safe Ball Valve

Brand:	Albion
SKU:	31ART995T

£21.59 – £108.85 ex. VAT

Valve Size

Clear

About this product

Full bore 3-piece ball valve in stainless steel 316 (CF8M) with graphite seals

Female BSPT taper threaded ends to ISO 7-1 (BS EN 10226-2)

Ball made of stainless steel 316 with PTFE ball seats

Stainless steel 316 stem with graphite stem packing and Viton O-ring

Fire safe valve design with built-in anti-static device

ATEX Approved and TUV certified to API STD 607

ISO 5211 Direct mount bracket for actuator installation

Valve torque at zero pressure: See datasheet

Manual operation via locking lever

Maximum operating pressure: 140 bar (PN140) at up to 35°C

Operating temperature range: -25°C – 200°C

Weight	N/A
Dimensions	N/A
Brand	Albion
Valve Type	3-Piece Full Bore Ball Valve
Connections	Female BSPT Taper Threads – ISO 7-1, BS EN 10226-2
Operation	Manual Lever/Handle Operated
Body Material	Stainless Steel 316 (CF8M)
Ball Material	Stainless Steel 316
Stem Material	Stainless Steel 316
Body Gasket Material	Pure Graphite
Ball Seat Material	PTFE
Stem Packing Material	Pure Graphite
Approvals	ATEX Approved. TUV certified (API STD 607)
Maximum Operating Pressure	140 bar
Operating Temperature Range	-25°C – 200°C
Additional Information	Built-in anti-static device.
Certification Availability	N/A
