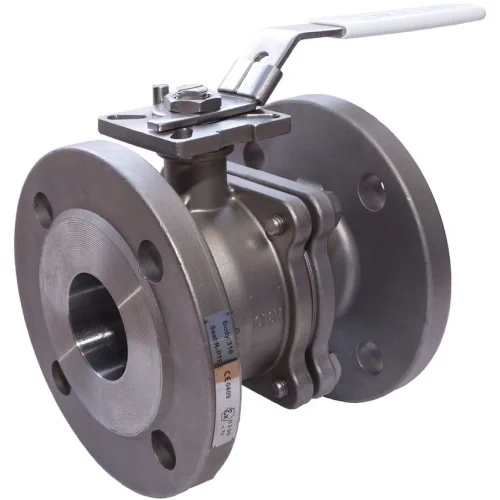

Albion Art956 Stainless Steel Fire Safe Ball Valve (PN16 Flanged)

Brand: Albion
SKU: 31ART956

£64.31£735.33 ex. VAT

About this product

Albion Art956 Stainless Steel Fire Safe Full Bore Ball Valve (BS EN 1092-1 Flanged)

Full bore ball valve with 2-piece body in stainless steel 316 (CF8M)

PN16/25/40 flanged ends to BS EN 1092-1:2018

Ball made of stainless steel 316 with PTFE ball seats

Stainless steel 316 stem with graphite stem packing

Fire safe valve design with built-in anti-static device

ISO 5211 Direct mount bracket for actuator installation

Valve torque at zero pressure: See datasheet

ATEX Approved and TUV certified to API STD 607

Manual operation via locking lever

Maximum operating pressure: 40 bar (PN40) at up to 35°C

Operating temperature range: -25°C – 200°C

Specification

Weight N/A
Dimensions N/A
Brand

Valve Type

2-Piece Full Bore Ball Valve

Connections

PN40 Flanged – BS EN 1092-1

Operation

Manual Lever/Handle Operated

Body Material

Stainless Steel 316 (CF8M)

Ball Material

Stainless Steel 316

Stem Material

Stainless Steel 316

Body Gasket Material

Pure Graphite

Ball Seat Material

PTFE

Stem Packing Material

Pure Graphite

Flange Diameter

See datasheet

Flange PCD

See datasheet

Flange Thickness

See datasheet

Flange Bolt Holes

See datasheet

Approvals

ATEX Approved. TUV certified (API STD 607)

Maximum Operating Pressure

40 bar

Operating Temperature Range

-25 – 200 Degrees C

Additional Information

Built-in anti-static device.

Certification Availability

N/A
