Albion Art902t Stainless Steel Full Bore Ball Valve

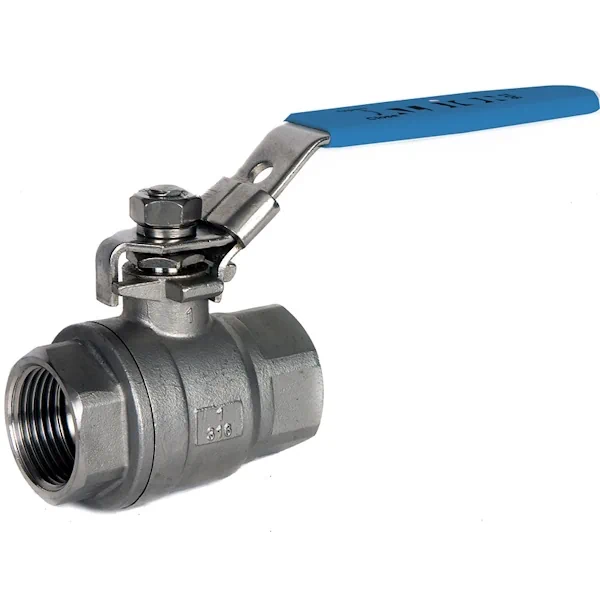

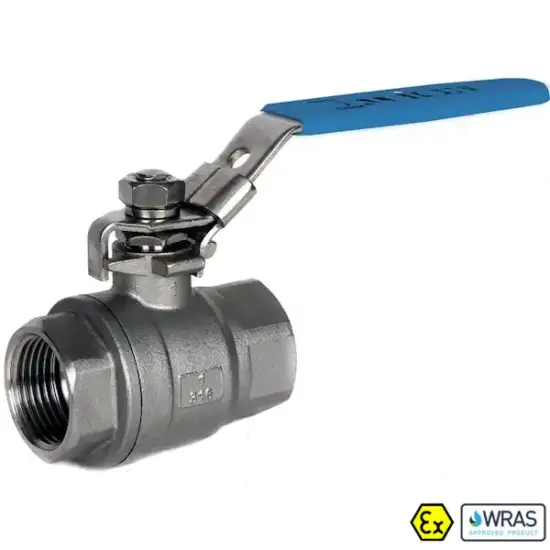

The ART 902t is a high-performance 2-piece full bore ball valve with a stainless steel 316 body and a reinforced PTFE seat. It features female BSPT taper threaded ends conforming to ISO 7/1 and includes a manual locking lever as standard. WRAS and ATEX approved, it operates within a temperature range of -25°C to 200°C. Pressure ratings vary by size, with up to 82 bar at 40°C for smaller sizes.
Key Features:
- Stainless steel 316 body, ball, and stem
- Female BSPT taper threaded ends (ISO 7/1)
- Reinforced PTFE seat, PTFE stem packing & washers
- WRAS and ATEX approved, locking lever included
- Sizes 1/4″ – 1″: 82 bar rated at 40°C
- Sizes 1 1/4″ – 1 1/2″: 69 bar rated at 30°C
- Sizes 2″ – 3″: 62 bar rated at 20°C
- -25°C – 200°C Operating temperature range
