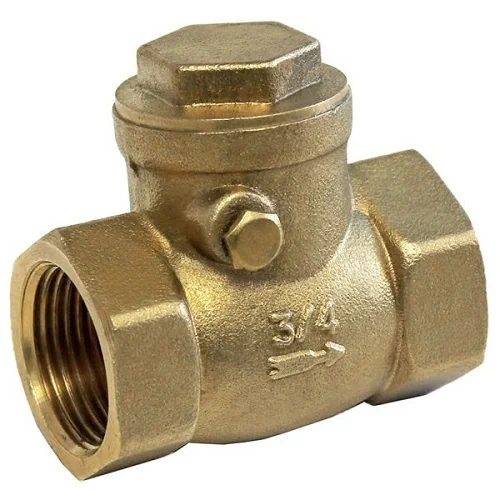

Albion Art84R Brass Swing Check Valve

Brand:	Albion
SKU:	31ART84R

£5.66 – £30.28 ex. VAT

Valve Size

Clear

About this product

Body & bonnet made of brass

Female BSPP parallel threaded ends conforming to ISO 228/1

Swing type closing mechanism with a brass disc and NBR rubber seat/sealing ring

Stainless steel 304 pin and brass plug

Maximum operating pressure: 20 bar (PN20) up to 100°C

Operating temperature range: 0°C – 100°C

Weight	N/A
Dimensions	N/A
Brand	Albion
Valve Type	Swing Check Valve
Connections	Female BSPP Parallel Threads – ISO 228-1, BS EN 10226-1
Body Material	Brass
Closing Mechanism Materials	Brass (Disc)
Spring Material	Stainless Steel 304
Seat Material	NBR
Maximum Operating Pressure	20 bar
Operating Temperature Range	0°C – 100°C
Certification Availability	N/A
