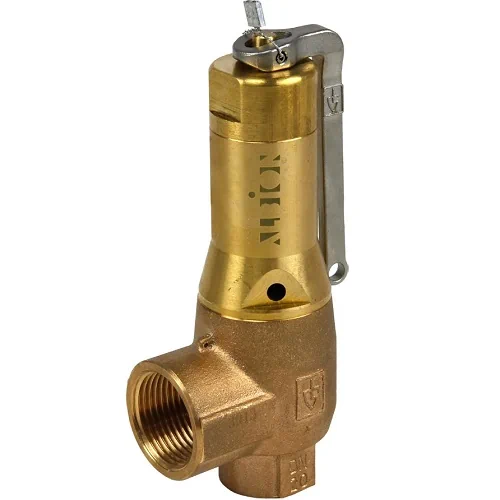

Albion Art645 High Discharge Gunmetal Safety Valve
Body, spring housing and cap made of gunmetal (bronze)
Female BSPP parallel threaded ends conforming to ISO 228-1
Stainless steel lever & spring, PTFE seat
EPDM Diaphagm seals and protects spring housing
WRAS approved and CE marked
Conforms to the ISO 4126-1 standard for safety valves, PED 2014/68/EU & TRD 421
Marine approvals: GL, DNV
Operating temperature range: -50°C – 195°C
5-Year manufacturers guarantee
3.1 Test certification available upon request
ATEX Approval available at extra cost
Discharge capacity: See datasheet
