Albion Art642 Gunmetal Safety Valve

Brand: Albion
SKU: 80.642

£158.92 – £567.17 ex. VAT

About this product

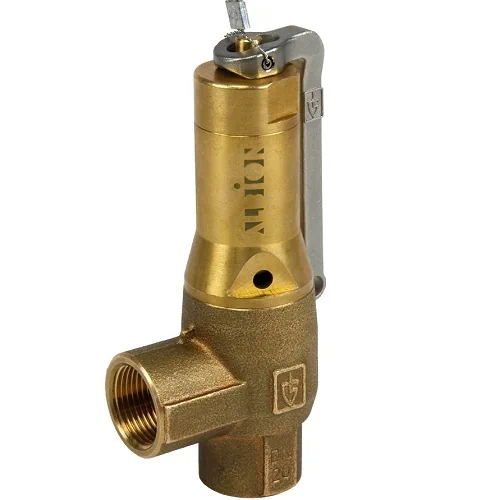

Albion Art642 Gunmetal Safety Valve

Body, spring housing and cap made of gunmetal (bronze)

Female BSPP parallel threaded ends conforming to ISO 228-1

Stainless steel lever & spring, PTFE seat

EPDM Diaphagm seals and protects spring housing

WRAS approved and CE marked

Conforms to the ISO 4126-1 standard for safety valves, PED 2014/68/EU & TRD 421

Marine approvals: GL, DNV

Operating temperature range: -50°C – 195°C

5-Year manufacturers guarantee

3.1 Test certification available upon request

ATEX Approval available at extra cost

Discharge capacity: See datasheet

Datasheet download

Specification

Weight N/A
Dimensions N/A
Brand

Valve Type

Safety Valve (Pressure Relief Valve)
Connections

Female BSPP Parallel Threaded (ISO 228-1, BS EN 10226-1)
Manufacturing Standard

ISO 4126-1
Body Material

Gunmetal (Bronze)
Spring Material

Stainless Steel 302
Seat Material

PTFE
Diaphragm Material

EPDM Rubber
Maximum Operating Pressure

16 bar
Operating Temperature Range

-50°C – 195°C
Additional Information

5-Year manufacturers guarantee. Includes GL & DNV Marine approvals, ATEX approval available at extra cost.
Certification Availability

Set pressure certificate. 3.1 Material test certificate to BS EN 10204. (Must be requested at time of order)
