Albion Art420 EPDM Flexible Expansion Bellows (PN16 Flanged)

Brand: Albion
SKU: 31ART420

£27.48£339.53 ex. VAT

About this product

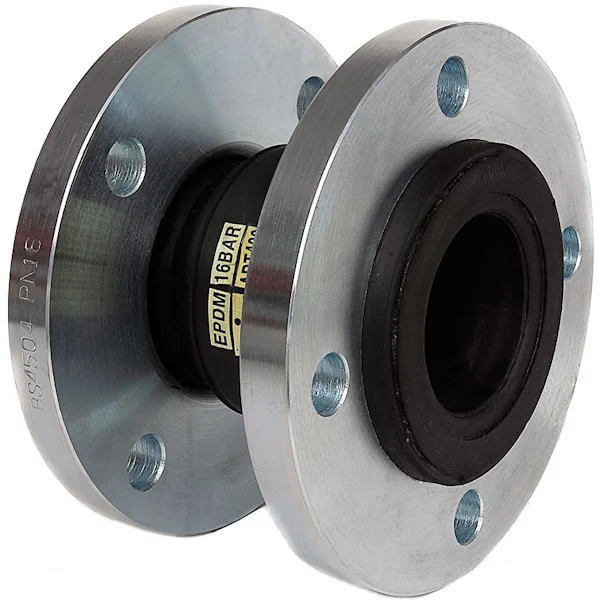

Albion Art420 PN16 Flanged Flexible EPDM Expansion Bellows

The ART 420 is a durable and versatile flexible connector with an EPDM bellow reinforced by nylon cord and steel for enhanced strength. It features zinc plated carbon steel PN16 flanged ends. Designed to absorb movement and vibration, it maintains reliable performance in demanding applications, with a PN16 pressure rating and an operating temperature range of -20°C to 100°C.

Key Features:

  • PN16 Flanged ends in zinc plated carbon steel
  • EPDM flexible bellows with nylon cord reinforcement
  • Galvanized malleable iron union ends
  • PN16 pressure rated, temp range: -20°C to 100°C

Specification

Weight N/A
Dimensions N/A
Brand

Valve Type

Expansion Bellows

Connections

PN16 Flanged – BS EN 1092-1

Body Material

EPDM + Nylon (Bellows). Zinc Plated Carbon Steel (Flanged Ends)

Body Gasket

Steel Wire

Maximum Operating Pressure

16 bar

Operating Temperature Range

-20°C – 100°C

Certification Availability

N/A
