1/4″ Albion Art298 Brass Binder Test Points With Stainless Steel 304 Extensions

Brand: Albion
SKU: 31ART298008
Availability:In stock (can be backordered)

£12.48 ex. VAT

In stock (can be backordered)

About this product

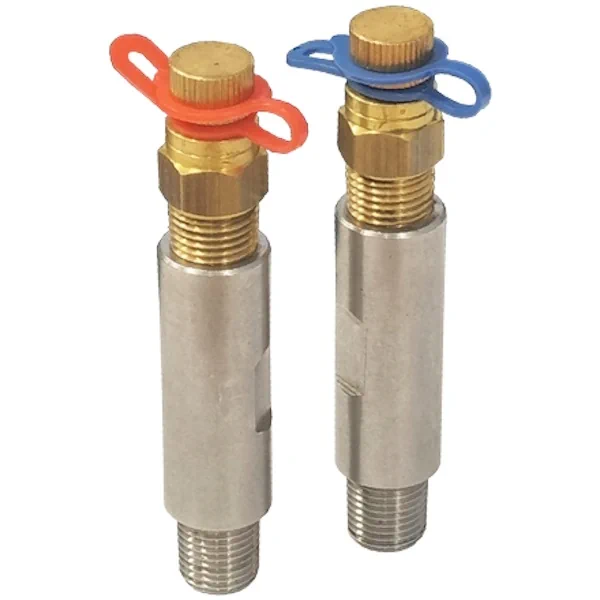

Albion Art298 DZR Brass Binder Test Points With Stainless Steel Extensions (Red & Blue Pair)

These binder test points feature 304 stainless steel extensions for enhanced durability in demanding environments. Designed with a DZR brass body and a self-sealing elastomeric core, they prevent leakage while ensuring safe and reliable pressure and temperature measurement. The red and blue straps provide clear upstream and downstream identification.

Key Features:

  • DZR brass body for corrosion resistance
  • Male BSPT taper threaded ends
  • Self-sealing EPDM elastomeric core
  • 304 stainless steel extension for added strength
  • Red and blue straps for easy identification
  • Max pressure: 35 bar, temperature range: -10°C – 135°C
  • Suitable for needle-type push-in probes

Specification

Weight 0.2 kg
Dimensions 86 × 40 × 40 mm
Valve Size

1/4" NB

Brand

Fitting Type

Binder Test Points

Connections

Male BSPT Taper Threaded Ends – ISO 7-1

Body Material

Brass (CW602N)

Sealing Material

EPDM

Extension Material

Stainless Steel 304

Maximum Operating Pressure

35 Bar

Operating Temperature Range

-10°C – 135°C

Certification Availability

N/A
