Albion Art22 DZR Brass Fixed Orifice Double Regulating Valve

Brand: Albion
SKU: 31ART22

£37.01£147.67 ex. VAT

About this product

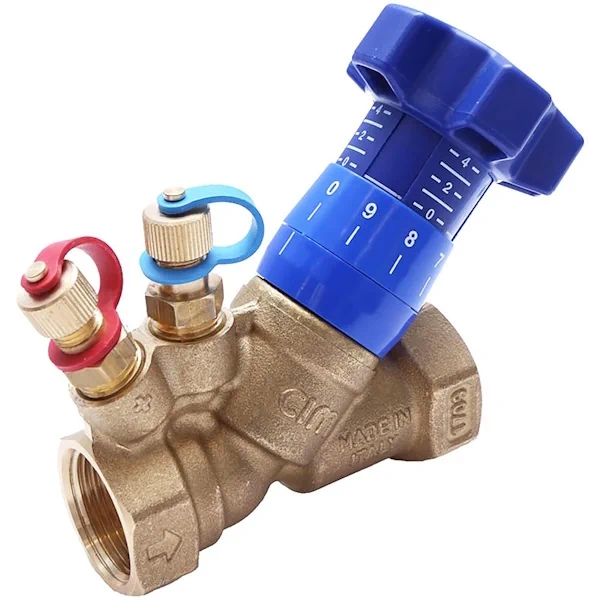

Albion Art22 DZR Brass Fixed Orifice Double Regulating Valve (FODRV)

The Albion DZR Brass fixed orifice double regulating valve provides precise flow control with +/-5% measurement accuracy. Conforming to BS 5154, it’s designed for durability with a DZR brass body, stem, and disc (cone), paired with EPDM seals for long-lasting performance.

Key Features:

  • BSP Threaded: Female BSPP Parallel threaded ends to ISO 228-1
  • Accurate Flow Control: +/-5% flow measurement accuracy for precise system regulation.
  • Durable Construction: DZR brass body with EPDM seals for corrosion resistance and reliability.
  • Wide Temperature Range: -10°C – 120°C for diverse applications.
  • High Pressure Rated: 25 Bar pressure rating at up to 100?C.
  • User-Friendly: Plastic handwheel with shut-off function and 360° clear readout.
  • WRAS Approved: Suitable for potable water applications.

Specification

Weight N/A
Dimensions N/A
Brand

Valve Type

Double Regulating Valve

Connections

Female BSPP Parallel Threads – ISO 7-1, BS EN 10226-1

Manufacturing Standard

Conforms to BS 5154

Operation

Manual Handwheel Operated

Body Material

DZR (Dezincification resistant) Brass

Cone

DZR (Dezincification resistant) Brass

Stem Material

DZR (Dezincification resistant) Brass

Cone Seat Material

EPDM

Stem O-Ring Material

EPDM

Maximum Operating Pressure

25 bar

Operating Temperature Range

-10°C – 120°C

Approvals

WRAS approved (Potable water)

Additional Information

Handwheel with shut off function and clear 360° reading.

Certification Availability

N/A
