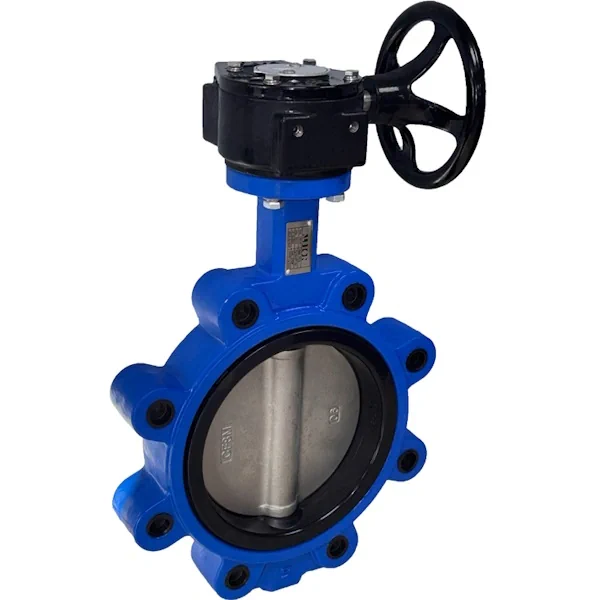

Albion Art140GB Gearbox Operated Ductile Iron Lugged & Tapped Butterfly Valve

Brand: Albion
SKU: 52ART140GB

£368.40£758.41 ex. VAT

About this product

Albion Art140GB Gearbox Operated Lugged & Tapped PN16 Butterfly Valve

The ART 140GB is a heavy-duty lugged and tapped butterfly valve with an epoxy-coated ductile iron GGG40 body, stainless steel 316 disc, and EPDM seat. It features a stainless steel 410 stem with PTFE bushings and EPDM O-rings. Designed for PN16 flanges to BS EN 1092-1, it includes a manual gearbox which is mounted to the valves ISO 5211 bracket. Rated to 16 bar at 50?C, with an operating temperature range of -10°C to 110°C.

Key Features:

  • Epoxy coated ductile iron body, stainless steel 316 disc, EPDM seat
  • PN16 flanged mounting to BS EN 1092-1, ISO 5211 direct mount
  • Manual gearbox, conforms to BS EN 593
  • Operating temp: -10°C to 110°C, pressure rated to 16 bar

Specification

Weight N/A
Dimensions N/A
Brand

Valve Type

Lugged & Tapped Butterfly Valve

Connections

PN16 Flanged – BS EN 1092-1

Manufacturing Standard

Conforms to BS EN 593 (previously BS 5155)

Operation

Manual Gearbox Operated

Body Material

Ductile Iron GGG40 (Epoxy Coated)

Disc Material

Stainless Steel 316

Stem Material

Stainless Steel 410

Seat Material

EPDM

Stem Packing Material

PTFE

Stem O-Ring Material

EPDM

Flange Diameter

See datasheet

Flange PCD

See datasheet

Flange Thickness

See datasheet

Flange Bolt Holes

See datasheet

Maximum Operating Pressure

16 bar (Up to 50°C)

Operating Temperature Range

-10°C – 110°C

Certification Availability

2.1 Letter of Conformity Only – Must be requested at time of order
