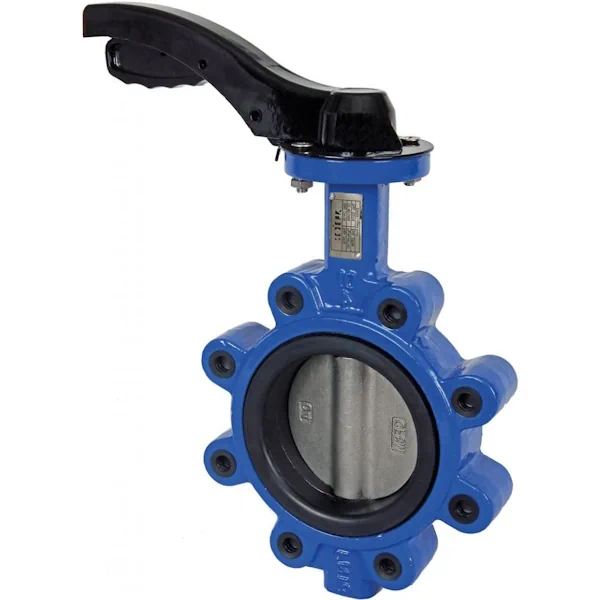

Albion Art140 Ductile Iron Lugged & Tapped Butterfly Valve

Brand: Albion
SKU: 52ART140

£42.94£628.79 ex. VAT

About this product

Albion Art140 Lugged & Tapped PN16 Butterfly Valve

The ART 140 is a heavy-duty lugged and tapped butterfly valve with an epoxy-coated ductile iron GGG40 body, stainless steel 316 disc, and EPDM seat. It features a stainless steel 410 stem with PTFE bushings and EPDM O-rings. Designed for PN16 flanges to BS EN 1092-1, it includes a locking lever and ISO 5211 direct mount for actuation. Rated to 16 bar at 50?C, with an operating temperature range of -10°C to 110°C.

Key Features:

  • Epoxy coated ductile iron body, stainless steel 316 disc, EPDM seat
  • PN16 flanged mounting to BS EN 1092-1, ISO 5211 direct mount
  • Locking lever included, conforms to BS EN 593
  • Operating temp: -10°C to 110°C, pressure rated to 16 bar

Specification

Weight N/A
Dimensions N/A
Brand

Valve Type

Lugged & Tapped Butterfly Valve

Connections

PN16 Flanged – BS EN 1092-1

Manufacturing Standard

Conforms to BS EN 593 (previously BS 5155)

Operation

Manual Lever/Handle Operated

Body Material

Ductile Iron GGG40 (Epoxy Coated)

Disc Material

Stainless Steel 316

Stem Material

Stainless Steel 410

Seat Material

EPDM

Stem Packing Material

PTFE

Stem O-Ring Material

EPDM

Flange Diameter

See datasheet

Flange PCD

See datasheet

Flange Thickness

See datasheet

Flange Bolt Holes

See datasheet

Maximum Operating Pressure

16 bar (Up to 50°C)

Operating Temperature Range

-10°C – 110°C

Certification Availability

2.1 Letter of Conformity Only – Must be requested at time of order
