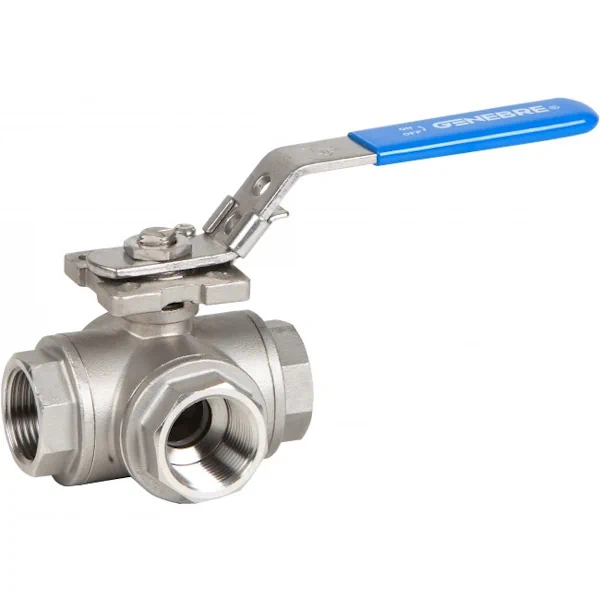

Genebre Art2041 Reduced Bore Stainless Steel 3-Way Ball Valve (T-Port)
Lever operated 3-ways ball valve with a reduced interior bore
Female BSPT taper threaded ends conforming to ISO 7-1 (BS EN 10226-1)
2-Piece body made of shot blasted stainless steel 1.4408 (CF8M) sealed with a PTFE body gasket
T-Port stainless steel ball with seats/seals made of PTFE & graphite
Blow-out proof stainless steel 316 stem with PTFE stem packing and a FKM (viton) O-ring
Anti-static device ensures electric continuity between the body, ball and stem. Required for flammable mediums
ISO 5211 direct mount for actuator installation
Valve torque at zero pressure: See datasheet
Built-in stainless steel locking lever with vinyl sleeve
Maximum operating pressure: 63 bar (PN63) at up to 50°C
Operating temperature range: -25°C – 180°C
