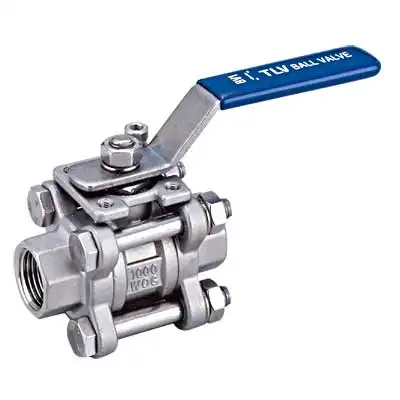

TLV BV1 Stainless Steel 3-Piece Ball Valve

Brand: TLV
SKU: 76BV1

£83.00£1,062.00 ex. VAT

About this product

TLV BV1 Full Bore Stainless Steel 3-Piece Ball Valve

3-piece stainless steel ball valve with a full interior bore and PTFE body gaskets

Female BSPT taper threaded ends to DIN 2999

Cast stainless steel ball with ball seats/seals in heat resistant carbon fibre-filled PTFE

Stainless steel stem with heat resistant carbon fibre-filled PTFE gland and two FPM O-rings

Suitable for use with steam, water, air and more

All internal body surfaces machined

Manual operation using stainless steel locking lever

Maximum operating pressure: 10 bar (PN10)

Maximum operating temperature: 185°C

Specification

Weight N/A
Dimensions N/A
Brand

Valve Type

3-Piece Full Bore Ball Valve

Connections

Female BSPT Taper Threaded (DIN 2999)

Operation

Manual Locking Lever Operated

Body Material

Cast Steel A351

Ball Material

Cast Steel A351

Stem Material

Stainless Steel 304

Body Gasket Material

Fluorine Resin PTFE

Ball Seats Material

Carbon fiber filled PTFE

Stem O-Ring Material

FPM

Maximum Operating Pressure

10 bar

Operating Temperature Range

0°C – 185°C

Additional Information

All internal body surfaces machined.

Certification Availability

Contact Us (Chargeable, may increase delivery time.)
